Adaptall 9277-06-06 9277-06-06

Adaptall 9277-06-06

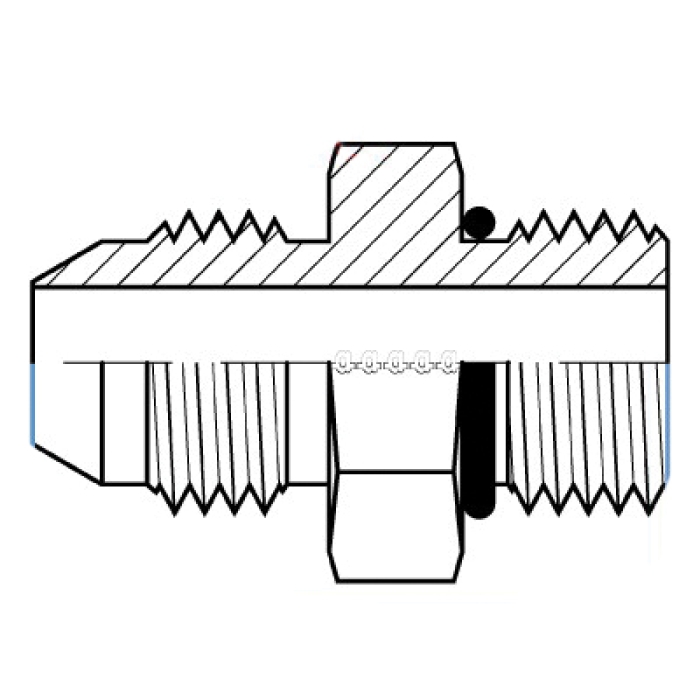

Adaptall 9277 Carbon Steel Straight Adapter, 3/8 in Male JIS x 3/8 in Male SAE ORB

  • Manufacturer: Adaptall Inc.
  • Brand: Adaptall
  • ARGPN: 9277-06-06
  • MPN: 9277-06-06
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Adaptall Inc. factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Adaptall Straight Adapter, Series: 9277, Connection Type 1: JIS, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: G 3/8-19, Connection Type 2: SAE ORB, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18 UNF, Hex Size: 19 mm, Dimension Standards: ISO 11926, JIS B 0202, SAE J1926, Material Construction: Carbon Steel, 38.3 mm Length

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type      :      JIS~ORB
Connection Type 1      :      JIS
Connection Type 2      :      SAE ORB
Dimension Standards      :      ISO 11926, JIS B 0202, SAE J1926
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      19 mm
Length      :      38.3 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9277
Shape      :      Straight
Thread Size 1      :      G 3/8-19
Thread Size 2      :      9/16-18 UNF
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_9002-12-12_CAT.pdf
