Adaptall 9325-08-22X1.5 9325-08-22X1.5

Adaptall 9325-08-22X1.5

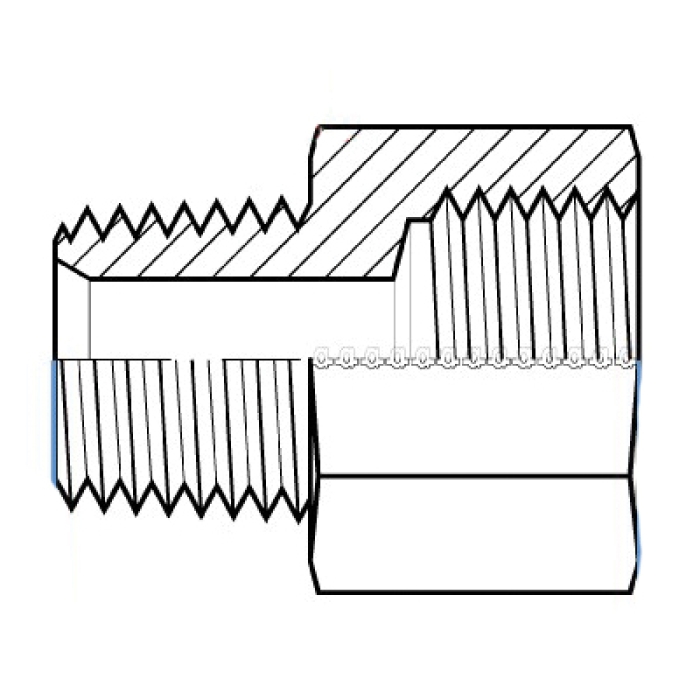

Adaptall 9325 Carbon Steel Rigid Straight Adapter, 22 mm Female Metric x 1/2 in MNPTF

  • Manufacturer: Adaptall Inc.
  • Brand: Adaptall
  • ARGPN: 9325-08-22X1.5
  • MPN: 9325-08-22X1.5
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Adaptall Inc. factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Adaptall Rigid Straight Adapter, Series: 9325, Connection Type 1: Metric, Gender 1: Female, Connection Size 1: 22 mm, Thread Size 1: M22 x 1.5, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 28.5 mm, Dimension Standards: ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974, Material Construction: Carbon Steel, 44.3 mm Length

Connection Size 1      :      22 mm
Connection Size 2      :      1/2 in
Connection Type      :      Metric~NPT
Connection Type 1      :      Metric
Connection Type 2      :      NPTF
Dimension Standards      :      ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974
Fitting Type      :      Straight Adapter
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      28.5 mm
Length      :      44.3 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9325
Shape      :      Straight
Thread Size 1      :      M22 x 1.5
Thread Size 2      :      1/2-14
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_9002-12-12_CAT.pdf
