Adaptall 9605S-04-LL08-12 9605S-04-LL08-12

Adaptall 9605S-04-LL08-12

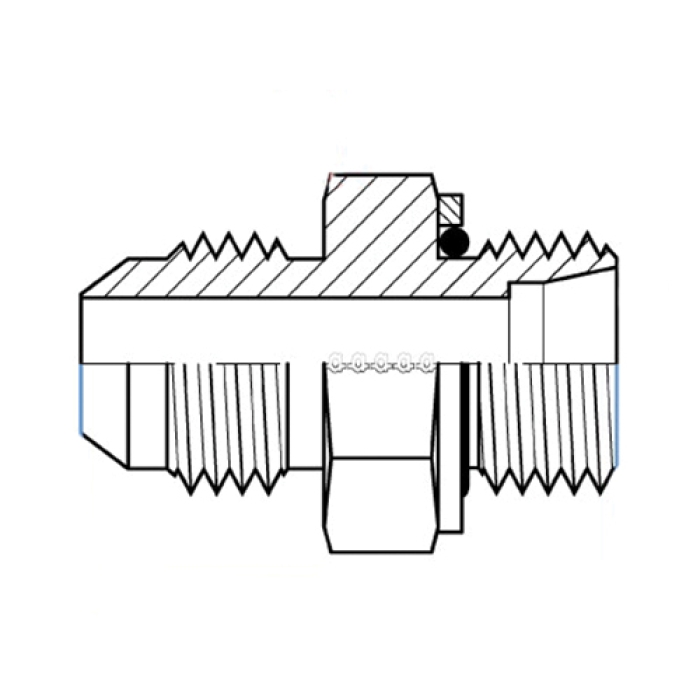

Adaptall 9605S Carbon Steel Extra Light-Duty Straight Adapter with Washer and O-ring, 8 mm Male Metric DIN Tube x 1/4 in Male JIC

  • Manufacturer: Adaptall Inc.
  • Brand: Adaptall
  • ARGPN: 9605S-04-LL08-12
  • MPN: 9605S-04-LL08-12
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Adaptall Inc. factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Adaptall Extra Light-Duty Straight Adapter with Washer and O-ring, Series: 9605S, Connection Type 1: Metric DIN Tube, Gender 1: Male, Connection Size 1: 8 mm, Thread Size 1: M12 x 1, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 7/16-20 UNF, Hex Size: 17 mm, Dimension Standards: DIN 2353, ISO 8434-2, ISO 8434-1, SAE J514, Material Construction: Carbon Steel, 32-1/2 mm Length

Connection Size 1      :      8 mm
Connection Size 2      :      1/4 in
Connection Type      :      Metric~JIC
Connection Type 1      :      Metric DIN Tube
Connection Type 2      :      JIC
Dimension Standards      :      DIN 2353, ISO 8434-2, ISO 8434-1, SAE J514
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      17 mm
Length      :      32-1/2 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9605S
Shape      :      Straight
Thread Size 1      :      M12 x 1
Thread Size 2      :      7/16-20 UNF

Applications: Extra light-duty applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_9002-12-12_CAT.pdf
