Aeroquip® 63-190600-4 63-190600-4

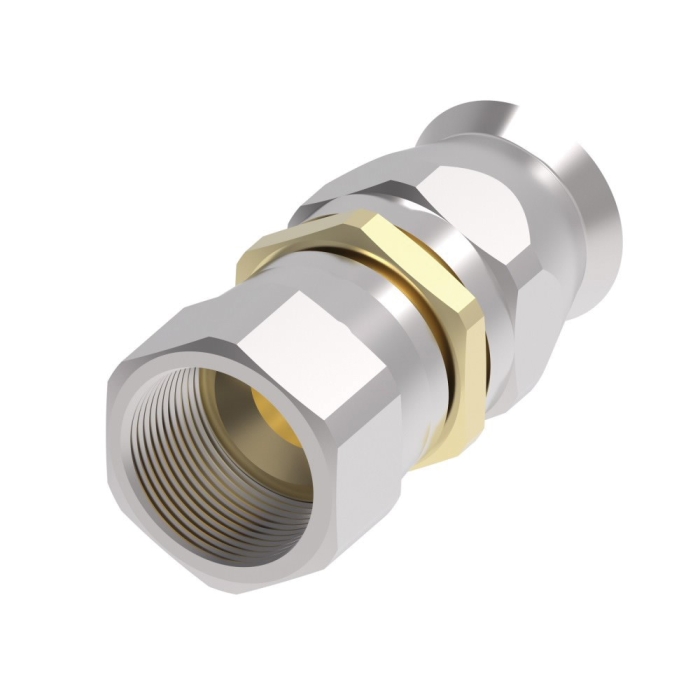

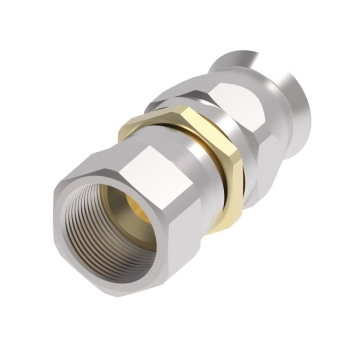

Aeroquip® 63-190600 Zinc Clear Trivalent Chromate Brass/Carbon Steel Female SAE 37 deg JIC Swivel 100R14 Super Gem Reusable Straight Hose Fitting

Aeroquip® 63-190600 100R14 Super Gem Reusable Straight Hose Fitting, Hose X SAE 37 deg JIC Swivel, Zinc Clear Trivalent Chromate, Brass/Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Aeroquip® 100R14 Super Gem Reusable Straight Hose Fitting, Series: 63-190600, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.56 in, Cut-Off Factor: 1.13 in, Material Construction: Brass/Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: 2807, FC465, and S-TW PTFE Hoses, Dimensions: 1.58 in L x 1.56 in W x 1.56 in H

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/4 in
    Connection Size 2      :      1/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 37 deg JIC Swivel
    Cut-Off Factor      :      1.13 in
    Dimensions      :      1.58 in L x 1.56 in W x 1.56 in H
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      2807, FC465, and S-TW PTFE Hoses
    Gender 2      :      Female
    Hex Size      :      0.56 in
    Hose Dash Size      :      04
    Material      :      Brass
    Material Construction      :      Brass/Carbon Steel
    Nominal Size      :      1/4 in
    Series      :      63-190600
    Shape      :      Straight
    Thread Size 2      :      7/16-20
    • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
    • Engineered to provide peak performance with Eaton's core braided hose products
    • Can be assembled in the field without special tooling
    • Reduced downtime
    • Quick repair

    Applications: For sustainable approach to designing hydraulic systems

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_401-12B_CAT.pdf
