Aeroquip® by Danfoss 4S12DSB8

Aeroquip® by Danfoss

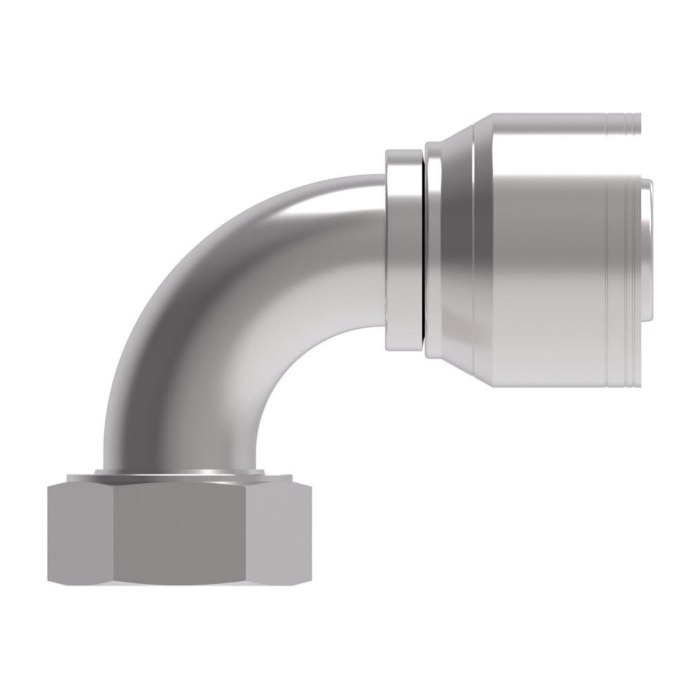

Aeroquip® by Danfoss 4S Series Dura-Kote Carbon Steel Female DIN Heavy 24 deg Seat Swivel 4-Spiral Crimp Hose 90 deg Elbow, 1/2 in x 16 mm

  • Manufacturer: Danfoss
  • Brand: Aeroquip® by Danfoss
  • ARGPN: 4S12DSB8
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Aeroquip® by Danfoss 4-Spiral Crimp Hose 90 deg Elbow, Series: 4S, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: DIN Heavy 24 deg Seat Swivel, Gender 2: Female, Connection Size 2: 16 mm, Nominal Size: 16 in, Thread Size 2: M24 x 1.5, Hex Size: 1.181 in, Cut-Off Factor: 1.73 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses, Dimensions: 3.65 in L x 1.34 in W x 2.45 in H, Dimension Standards: SAE J1176

Connection Size 1      :      1/2 in
Connection Size 2      :      16 mm
Connection Type      :      Hose~DIN Heavy Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      DIN Heavy 24 deg Seat Swivel
Cut-Off Factor      :      1.73 in
Dimension Standards      :      SAE J1176
Dimensions      :      3.65 in L x 1.34 in W x 2.45 in H
Finish      :      Dura-Kote
Fitting Type      :      90 deg Elbow
For Use With      :      EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses
Gender 2      :      Female
Hex Size      :      1.181 in
Hose Dash Size      :      08
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      16 in
Series      :      4S
Shape      :      90 deg Elbow
Thread Size 2      :      M24 x 1.5
Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistantNew patent pending dura-seal technology to eliminate hose assembly cool down leakageClass zero leakage SAE J1176 on approved hose stylesEaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
