Aeroquip® by Danfoss 4S12DS8 4S12DS8

Aeroquip® by Danfoss 4S12DS8

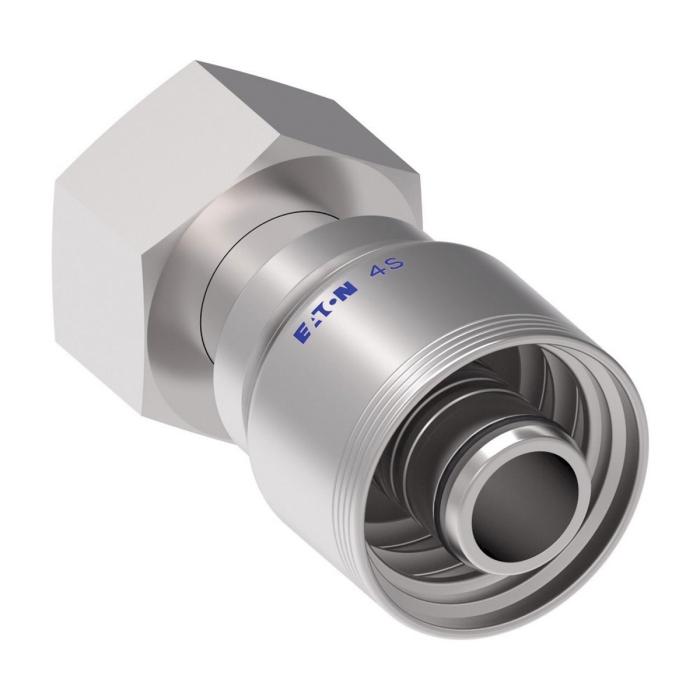

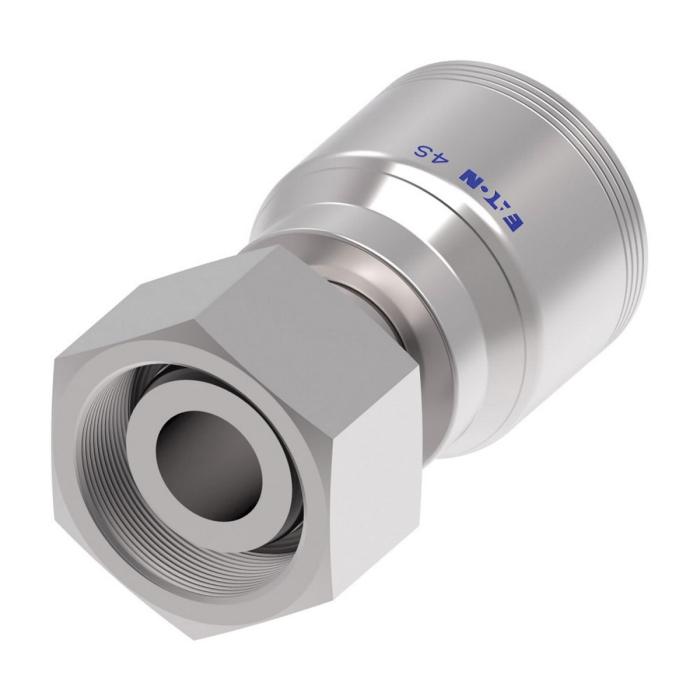

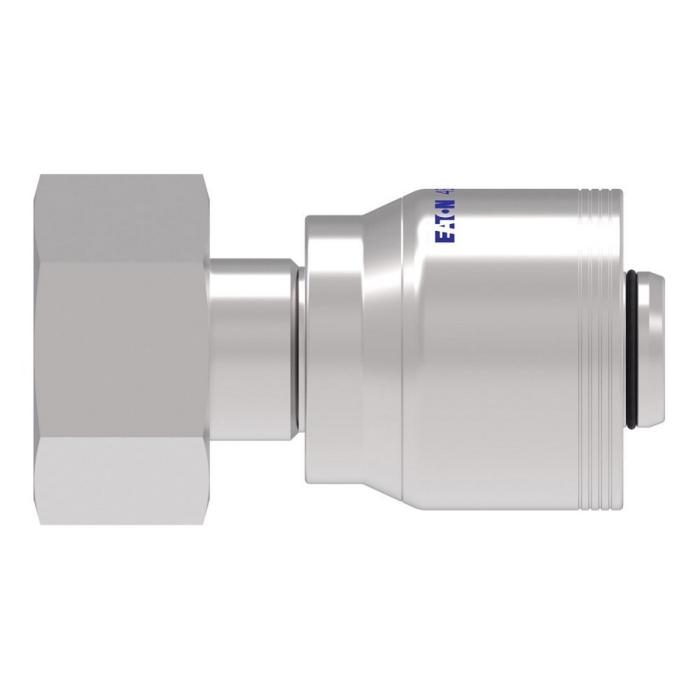

Aeroquip® by Danfoss 4S12DS8 4-Spiral Crimp Straight Hose Fitting, 1/2 in Hose

  • Manufacturer: Danfoss
  • Brand: Aeroquip® by Danfoss
  • ARGPN: 4S12DS8
  • MPN: 4S12DS8
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion resistance results in higher operating performance and less equipment downtime.

Aeroquip® by Danfoss 4-Spiral Crimp Straight Hose Fitting, Series: 4S, Fitting Type: Hose Fitting, Connection Size 1: 1/2 in, Connection Type 1: Hose, Connection Size 2: 16 mm, Connection Type 2: Female DIN Heavy 24 deg Seat Swivel, Connection Type: Hose|Female Metric Swivel, Hose Dash Size: 08, Cut-Off Factor: 1.29 in, Steel, Material Construction: Carbon Steel, Dura-Kote, M24 x 1.5 Thread, 1.181 in Hex, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses, 2.456 in L x 1.335 in W x 1.335 in H

Connection Size 1      :      1/2 in
Connection Size 2      :      16 mm
Connection Type      :      Hose|Female Metric Swivel
Connection Type 1      :      Hose
Connection Type 2      :      Female DIN Heavy 24 deg Seat Swivel
Cut-Off Factor      :      1.29 in
Dimensions      :      2.456 in L x 1.335 in W x 1.335 in H
Finish      :      Dura-Kote
Fitting Type      :      Hose Fitting
For Use With      :      EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses
Hex Size      :      1.181 in
Hose Dash Size      :      08
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      4S Series
Thread Size      :      M24 x 1.5
  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • New patent pending dura-seal technology to eliminate hose assembly cool down leakage
  • Class zero leakage SAE J1176 on approved hose styles
  • Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
