Aeroquip® by Danfoss 4S8DL6

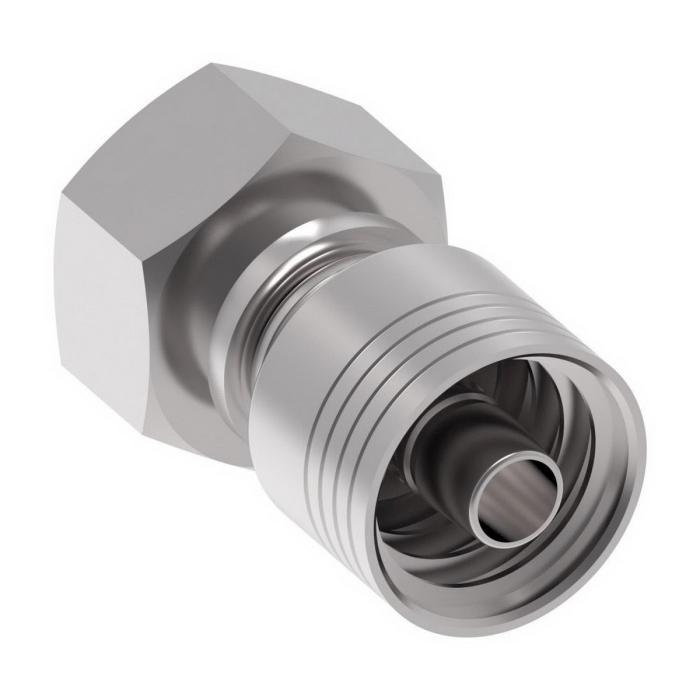

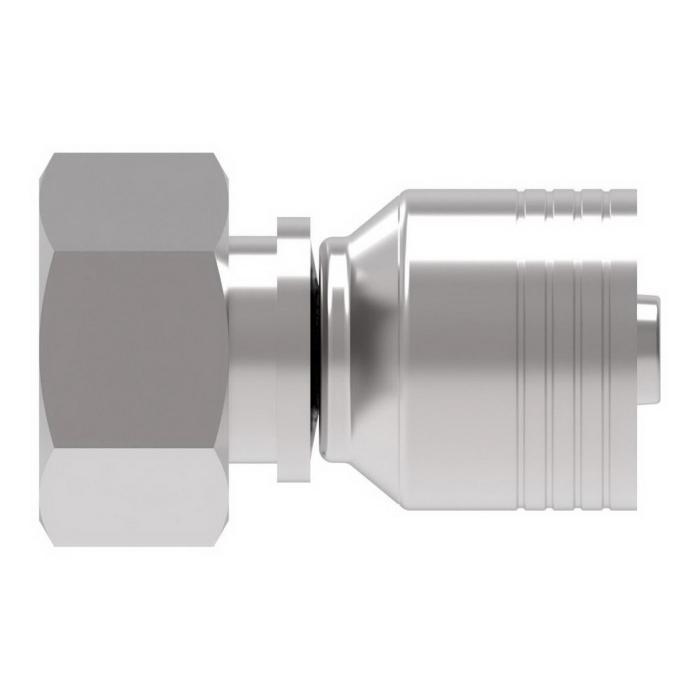

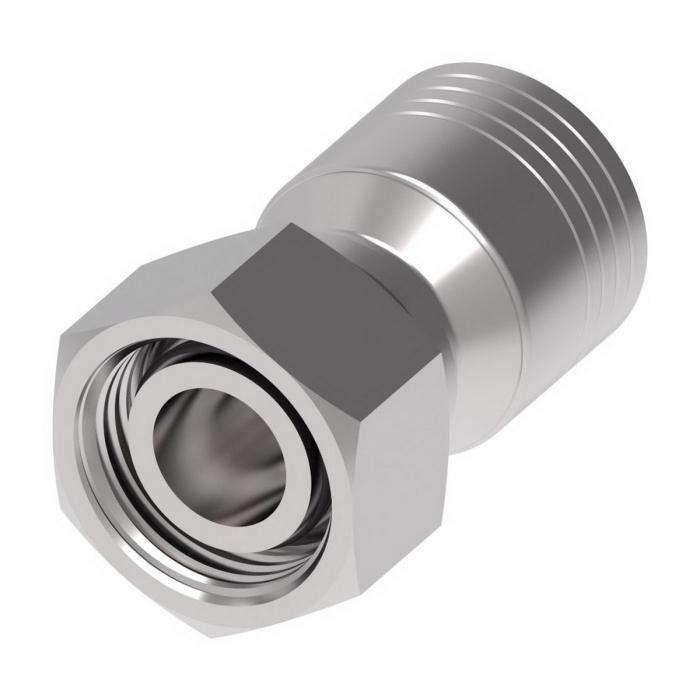

Aeroquip® by Danfoss 4S8DL6 4-Spiral Crimp Straight Hose Fitting, 3/8 in Hose
- Manufacturer: Danfoss
- Brand: Aeroquip® by Danfoss
- ARGPN: 4S8DL6
- MPN: 4S8DL6
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Danfoss factory-direct delivery:
-
Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion resistance results in higher operating performance and less equipment downtime.
Aeroquip® by Danfoss 4-Spiral Crimp Straight Hose Fitting, Series: 4S, Fitting Type: Hose Fitting, Connection Size 1: 3/8 in, Connection Type 1: Hose, Connection Size 2: 10 mm, Connection Type 2: Female DIN Light 24 deg Seat Swivel, Connection Type: Hose|Female Metric Swivel, Hose Dash Size: 06, Cut-Off Factor: 1.24 in, Steel, Material Construction: Carbon Steel, Dura-Kote, M16 x 1.5 Thread, 3/4 in Hex, For Use With: EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Hoses, 2 in L x 1.16 in W x 1.16 in H
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 10 mm |
| Connection Type | : | Hose|Female Metric Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female DIN Light 24 deg Seat Swivel |
| Cut-Off Factor | : | 1.24 in |
| Dimensions | : | 2 in L x 1.16 in W x 1.16 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | Hose Fitting |
| For Use With | : | EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Hoses |
| Hex Size | : | 3/4 in |
| Hose Dash Size | : | 06 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 4S Series |
| Thread Size | : | M16 x 1.5 |
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- New patent pending dura-seal technology to eliminate hose assembly cool down leakage
- Class zero leakage SAE J1176 on approved hose styles
- Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
