Aeroquip® by Danfoss 6SA24MP24

Aeroquip® by Danfoss

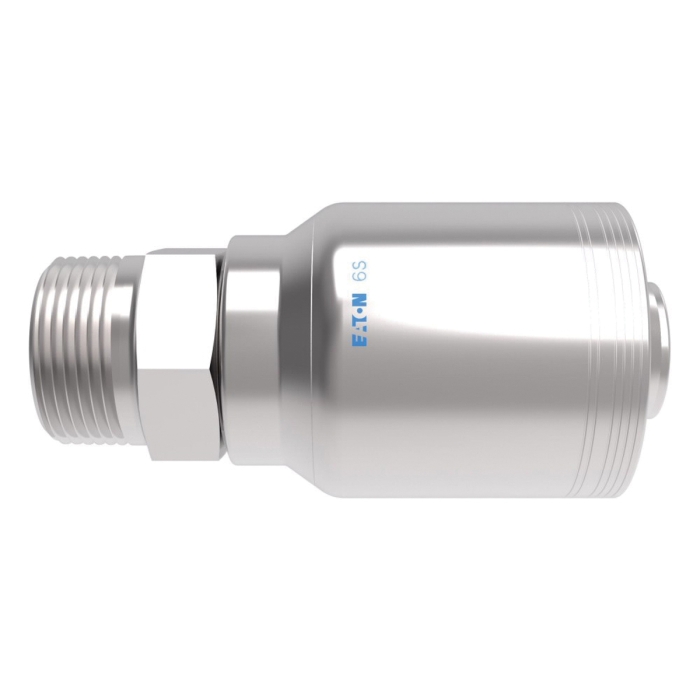

Aeroquip® by Danfoss 6S Series Dura-Kote Carbon Steel MNPTF 6-Spiral Rigid Crimp Straight Hose Fitting, 1-1/2 in

  • Manufacturer: Danfoss
  • Brand: Aeroquip® by Danfoss
  • ARGPN: 6SA24MP24
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Aeroquip® by Danfoss 6-Spiral Rigid Crimp Straight Hose Fitting, Series: 6S, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 2 in, Cut-Off Factor: 2.57 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses, Dimensions: 5.64 in L x 2.82 in W x 2.97 in H, Dimension Standards: SAE J1176

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type      :      Hose~NPT Male
Connection Type 1      :      Hose
Connection Type 2      :      NPTF
Cut-Off Factor      :      2.57 in
Dimension Standards      :      SAE J1176
Dimensions      :      5.64 in L x 2.82 in W x 2.97 in H
Finish      :      Dura-Kote
Fitting Type      :      Straight Hose Fitting
For Use With      :      FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses
Gender 2      :      Male
Hex Size      :      2 in
Hose Dash Size      :      24
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      1-1/2 in
Series      :      6S
Shape      :      Straight
Thread Size 2      :      1-1/2-11-1/2
Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistantNew patent pending dura-seal technology to eliminate hose assembly cool down leakageClass zero leakage SAE J1176 on approved hose stylesEaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_4S20EK12_CAT.pdf
