Aeroquip® by Danfoss

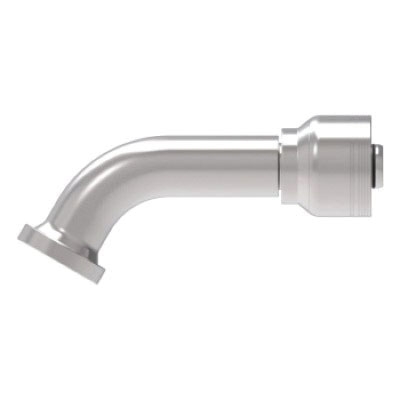

Aeroquip® by Danfoss 6-Spiral Crimp Hose 60 deg Elbow, Series: 6S, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE Code 62 Flange, Connection Size 2: 1-1/4 in, Cut-Off Factor: 5.65 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses, Dimensions: 8.28 in L x 2.338 in W x 4.429 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1 in
Connection Size 2	:	1-1/4 in
Connection Type	:	Hose~Code 62 Flange
Connection Type 1	:	Hose
Connection Type 2	:	SAE Code 62 Flange
Cut-Off Factor	:	5.65 in
Dimension Standards	:	SAE J1176
Dimensions	:	8.28 in L x 2.338 in W x 4.429 in H
Finish	:	Dura-Kote
Fitting Type	:	60 deg Elbow
For Use With	:	FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses
Hose Dash Size	:	16
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	6S
Shape	:	60 deg Elbow

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and great corrosion-resistance results in higher operating performance and less equipment downtime.New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistantNew patent pending dura-seal technology to eliminate hose assembly cool down leakageClass zero leakage SAE J1176 on approved hose stylesEaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assemblyWarranty: 1 Year Limited
