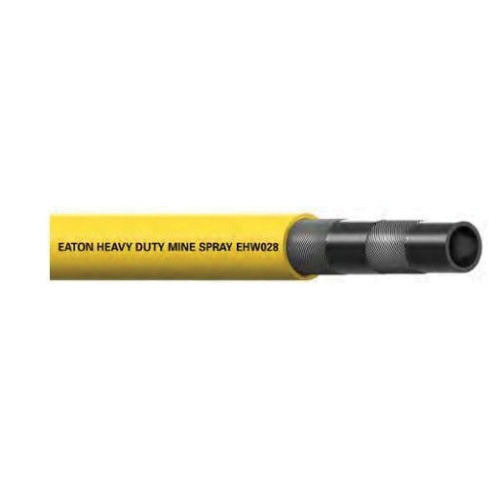

Aeroquip® EHW028 Yellow Nitrile Heavy-Duty Mine Spray Hose
Danfoss Heavy-Duty Mine Spray Hose Series EHW028 is designed for high-pressure air delivery in mining, construction, and equipment rental applications. Featuring an oil-mist-resistant NBR blend tube and a pin-pricked neoprene blend cover, it offers durability and safety in demanding environments. Reinforced with high-tensile steel wire, this hose is rated for 1000 psi and operates effectively in temperatures ranging from -31°F to 212°F, ensuring reliable performance under extreme conditions.
-
ARGPN: EHW028-24-100
-
-
Nominal Size:
-
Nominal Size:
Aeroquip® Heavy-Duty Mine Spray Hose, Series: EHW028, Nominal Size: 1-1/2 in, 1.89 in OD, 1-1/2 in ID, 1 ft Length, 1000 psi, Material Construction: Nitrile, Pin-Pricked Neoprene Blend Cover, Construction: High-Tensile Steel Wire, Yellow, 17.91 in Bend Radius, Resistance Properties: Oil-Mist, -31 deg F Low, 212 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 17.91 in |
| Color | : | Yellow |
| Construction | : | High-Tensile Steel Wire |
| Cover Material | : | Pin-Pricked Neoprene Blend |
| Inside Diameter | : | 1-1/2 in |
| Length | : | 100 ft |
| Material | : | Nitrile |
| Material Construction | : | Nitrile |
| Nominal Size | : | 1-1/2 in |
| Outside Diameter | : | 1.89 in |
| Pressure Rating | : | 1000 psi |
| Product Type | : | Spray Hose |
| Resistance Properties | : | Oil-Mist |
| Series | : | EHW028 |
| Temperature High | : | 212 deg F |
| Temperature Low | : | -31 deg F |
- Oil-mist-resistant NBR blend tube
- MSHA pin pricked neoprene blend cover
Applications: High pressure air for mining, construction and equipment rental
