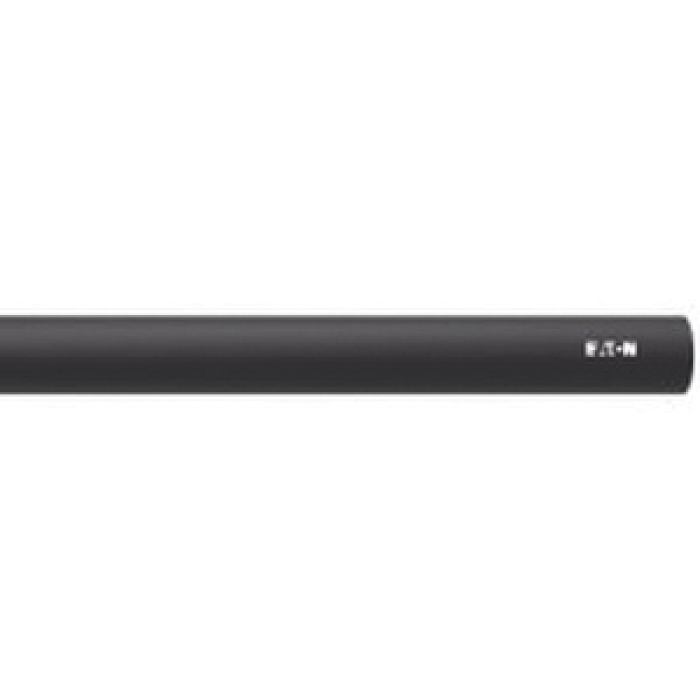

Aeroquip® FC273B 6-Spiral Wire Synthetic Rubber Hydraulic Spiral Hose
The Aeroquip® FC273B Hydraulic Spiral Hose is engineered for high-pressure hydraulic applications, particularly in environments where abrasion resistance is crucial. This hose features a synthetic rubber inner tube and a robust BRUISER™ outer cover, providing exceptional protection against abrasion, chemicals, and environmental factors. It is reinforced with six layers of spiral wire, ensuring durability and reliability under demanding conditions. The hose operates efficiently within a temperature range of -40°F to +250°F (-40°C to +121°C) and is suitable for use with petroleum and water-based fluids. It is ideal for critical applications in construction, forestry, and other off-highway vehicles.
-
ARGPN: FC273B-24
-
-
Nominal Size:
-
Inside Diameter:
-
Nominal Size:
Aeroquip® Hydraulic Spiral Hose, Series: FC273B, Nominal Size: 1-1/2 in, Dash Size: 24, 2.31 in OD, 1-1/2 in ID, 0.41 in Thick Wall, 1 ft Length, 5100 psi, SAE Rating: SAE 100R13, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 6-Spiral Wire, Black, 20 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 250 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 20 in |
| Color | : | Black |
| Construction | : | 6-Spiral Wire |
| Cover Material | : | Synthetic Rubber |
| Dash Size | : | 24 |
| Inside Diameter | : | 1-1/2 in |
| Length | : | 1 ft |
| Material | : | Nitrile |
| Material Construction | : | Synthetic Rubber |
| Nominal Size | : | 1-1/2 in |
| Outside Diameter | : | 2.31 in |
| Pressure Rating | : | 5100 psi |
| Product Type | : | Hydraulic Spiral Hose |
| Resistance Properties | : | Abrasion |
| SAE Rating | : | SAE 100R13 |
| Series | : | FC273B |
| Temperature High | : | 250 deg F |
| Temperature Low | : | -40 deg F |
| Wall Thickness | : | 0.41 in |
Applications: For high abrasion industrial and hydraulic system applications with petroleum and water-based fluids, critical applications in construction, forestry and other off-highway vehicles
