Banjo® V300 V300

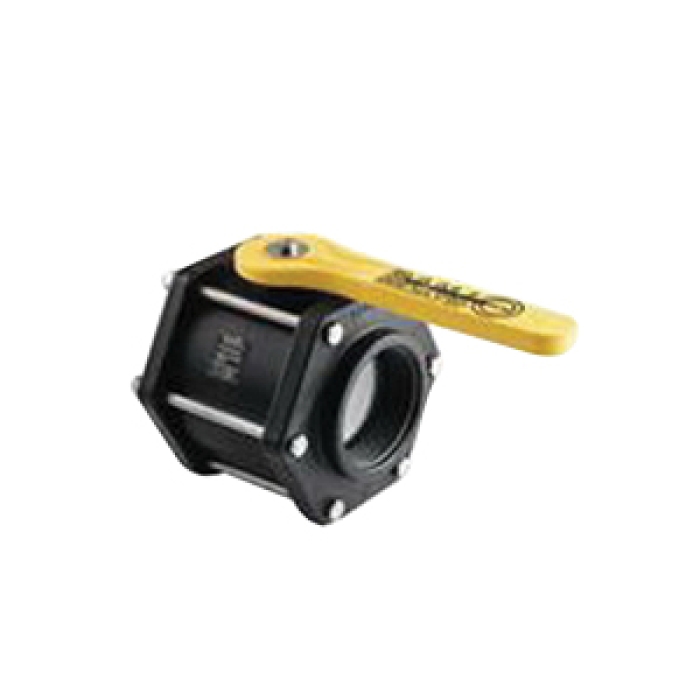

Banjo® Polypropylene 6-Bolt Standard-Port Ball Valve

Banjo® 6-Bolt Standard-Port Ball Valve, FPT, Polypropylene

  • ARGPN: V300 loading
pin-int

Banjo® 6-Bolt Standard-Port Ball Valve, Nominal Size: 3 in, Connection Type: FPT, Actuator Type: Lever, Material Construction: Polypropylene, PTFE Stem Bushing and Seat Trim, FKM Seal, 6-15/32 in Length, 6-3/32 in Width, 150 deg F, 225 psi

Actuator Type      :      Lever
Connection Type      :      FPT
Length      :      6-15/32 in
Material      :      Polypropylene
Material Construction      :      Polypropylene
Nominal Size      :      3 in
Pressure Rating      :      225 psi
Product Type      :      Ball Valve
Seal Material      :      FKM
Temperature Rating      :      150 deg F
Trim Material      :      PTFE Stem Bushing and Seat
Width      :      6-3/32 in
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • Precision molded in polypropylene reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Stainless steel bolts
