Brennan 1930-62-20-20 1930-62-20-20

Brennan 1930-62-20-20

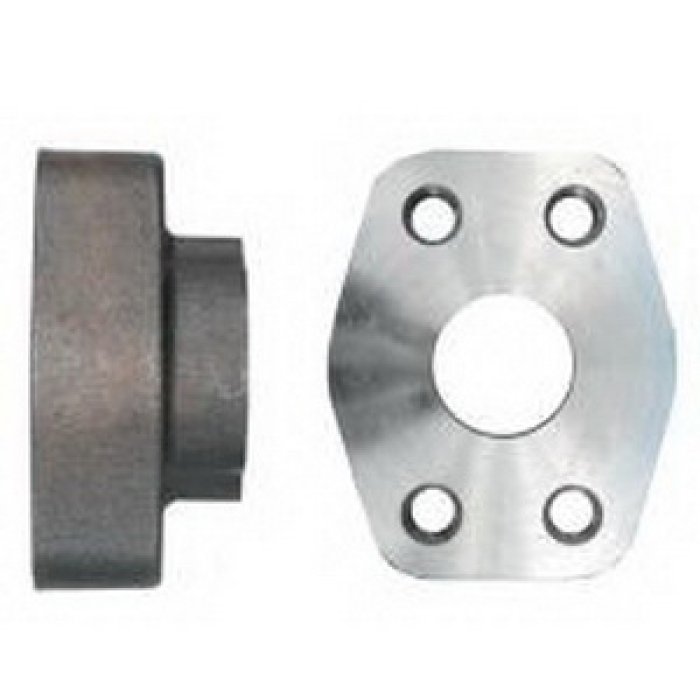

BRENNAN 1930-62 Steel Port Block, 1-1/4 in SAE Code 62 Flat Face Flange x 1-1/4 in Female ORB

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 1930-62-20-20
  • MPN: 1930-62-20-20
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

BRENNAN Port Block, Series: 1930-62, Connection Type 1: SAE Code 62 Flange, Connection Size 1: 1-1/4 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 1-1/4 in, Thread Size 2: 1/2-13, Material Construction: Steel, 3-3/4 in Length, 3.06 in Width, 1-1/2 in Height

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type      :      Code 62~ORB
Connection Type 1      :      SAE Code 62 Flange
Connection Type 2      :      ORB
Fitting Type      :      Port Block
Gender 2      :      Female
Height      :      1-1/2 in
Length      :      3-3/4 in
Material      :      Steel
Material Construction      :      Steel
Series      :      1930-62
Shape      :      Flange
Thread Size 2      :      1/2-13
Width      :      3.06 in
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_1700-32-24_CAT.pdf
