Brennan 2501-16-16-FG 2501-16-16

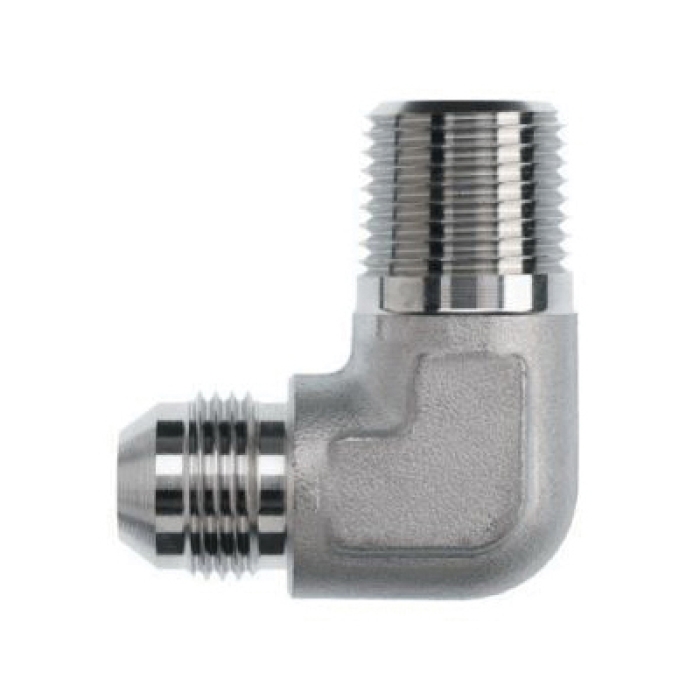

BRENNAN 2501 Forged Steel 90 deg Elbow

BRENNAN 2501 90 deg Elbow, SAE 37 deg JIC X NPTF, Forged Steel

pin-int

BRENNAN 90 deg Elbow, Series: 2501, Connection Type 1: SAE 37 deg JIC, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: 1-5/16-12, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1.312 in, Dimension Standards: SAE 070202, MS 51504, 4000 psi, Material Construction: Forged Steel

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type      :      JIC~NPT
Connection Type 1      :      SAE 37 deg JIC
Connection Type 2      :      NPTF
Dimension Standards      :      SAE 070202, MS 51504
Fitting Type      :      90 deg Elbow
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1.312 in
Industry Category      :      Hydraulic Adapters~Marine Hydraulic Adapters
Material      :      Steel
Material Construction      :      Forged Steel
Pressure Rating      :      4000 psi
Series      :      2501
Shape      :      90 deg Elbow
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-11-1/2
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2501-16-16-B_CAT.pdf
