Brennan 6603-08-08-08-FG 6603-08-08-08

Brennan 6603-08-08-08-FG

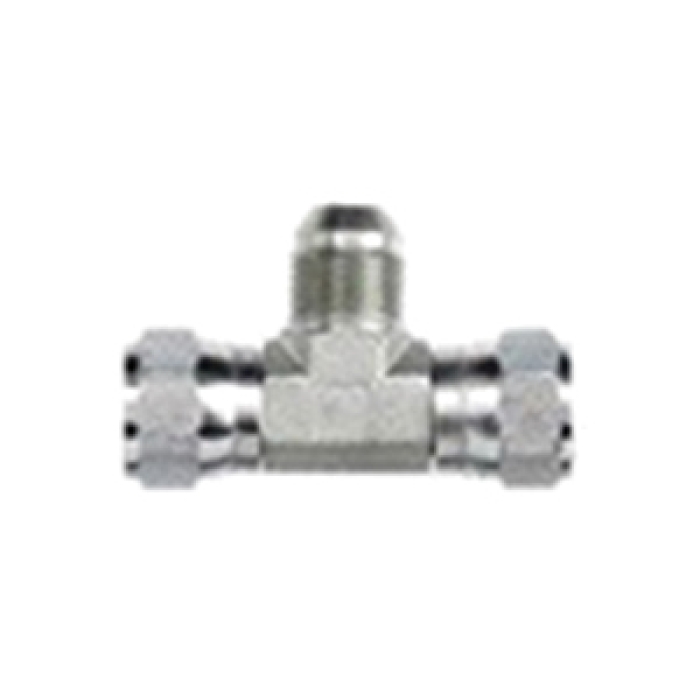

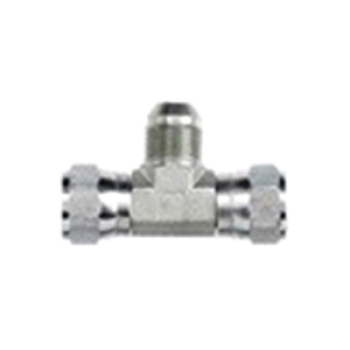

BRENNAN 6603-FG Forged Steel Branch Tee, 1/2 in Female SAE 37 deg JIC Swivel x 1/2 in Female SAE 37 deg JIC Swivel x 1/2 in Male SAE 37 deg JIC Flare

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 6603-08-08-08
  • MPN: 6603-08-08-08-FG
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

BRENNAN Branch Tee, Series: 6603-FG, Connection Type 1: SAE 37 deg JIC Swivel, Gender 1: Female, Connection Size 1: 1/2 in, Thread Size 1: 3/4-16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16, Connection Type 3: SAE 37 deg JIC Flare, Gender 3: Male, Connection Size 3: 1/2 in, Thread Size 3: 3/4-16, Hex Size: 7/8 in, 5000 psi, Material Construction: Forged Steel

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Size 3      :      1/2 in
Connection Type      :      JIC Swivel~JIC Swivel~JIC
Connection Type 1      :      SAE 37 deg JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
Connection Type 3      :      SAE 37 deg JIC Flare
Fitting Type      :      Tee
Gender 1      :      Female
Gender 2      :      Female
Gender 3      :      Male
Hex Size      :      7/8 in
Material      :      Steel
Material Construction      :      Forged Steel
Pressure Rating      :      5000 psi
Series      :      6603-FG
Shape      :      Tee
Thread Size 1      :      3/4-16
Thread Size 2      :      3/4-16
Thread Size 3      :      3/4-16
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2501-16-16-B_CAT.pdf
