Campbell Fittings WDESS-2X3 WDESS-2X3

Campbell Fittings WDESS-2X3

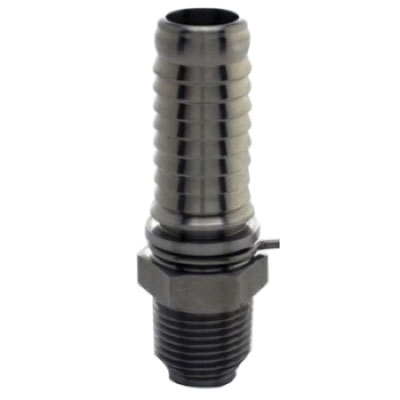

Campbell Fittings WDESS-2X3 300 Stainless Steel Washdown Swivel Adapter, 3/4 in Hose x 1/2 in MNPT Swivel

  • Manufacturer: Ideal Clamp Products
  • Brand: Campbell Fittings
  • ARGPN: WDESS-2X3
  • MPN: WDESS-2X3
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Ideal Clamp Products factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Campbell Fittings Washdown Swivel Adapter, Connection Type 1: Hose, Connection Size 1: 3/4 in, Connection Type 2: NPT Swivel, Gender 2: Male, Connection Size 2: 1/2 in, Material Construction: 300 Stainless Steel

Connection Size 1      :      3/4 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Hose
Connection Type 2      :      NPT Swivel
Gender 2      :      Male
Material      :      Stainless Steel
Material Construction      :      300 Stainless Steel
Shape      :      Adapter
  • 360 deg swivel rotation between the threaded hex and hose barb for easy installation and smooth swiveling during wash down, eliminates hose kinking
  • Threaded body includes hex wrench-flats
  • FKM O-ring inside body area, round wire style snap ring in front of body
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end bump detail which eases installation onto the hose to reduce potential failure caused by abrasion inside the hose) grips, seals and protects hose
  • With the swivel at both ends, hose wrap up is significantly easier and fighting the hose rotations during coiling is drastically reduced

Applications: For use in hot water wash down applications

  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Campbell_Fittings_WDESS2X3_SS.pdf
