Continental 20447688 ARVAC600

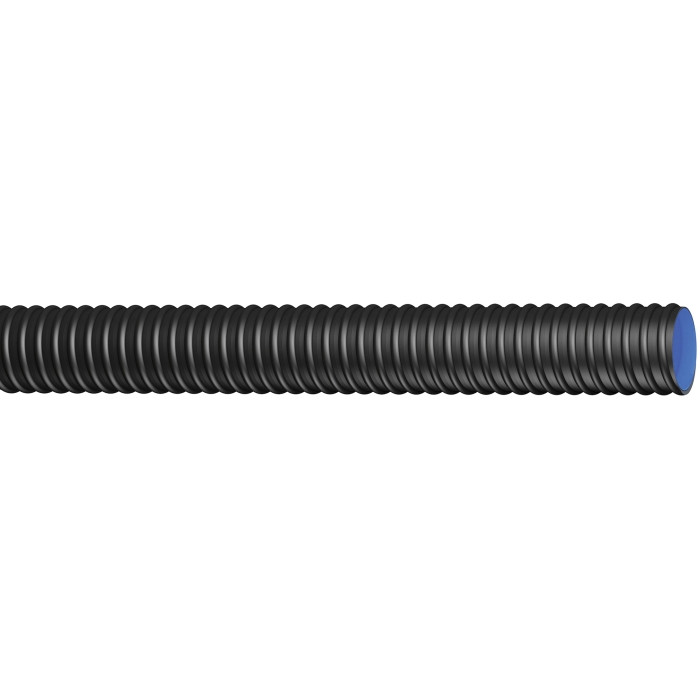

Continental Arvac™ SW Urethane Heavy-Duty Suction Hose

Continental Arvac™ SW Heavy-Duty Suction Hose, Black, Urethane

pin-int

Continental Arvac™ SW Heavy-Duty Suction Hose, Nominal Size: 6 in, 6.89 in OD, 6 in ID, 1 ft Length, 25 psi, Material Construction: Urethane, Thermoplastic Cover, Construction: Rigid High-Density PVC Helix, Black, 8 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 158 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      8 in
Color      :      Black
Construction      :      Rigid High-Density PVC Helix
Cover Material      :      Thermoplastic
Inside Diameter      :      6 in
Length      :      100 ft
Material      :      Urethane
Material Construction      :      Urethane
Nominal Size      :      6 in
Outside Diameter      :      6.89 in
Pressure Rating      :      25 psi
Product Type      :      Suction Hose
Resistance Properties      :      Abrasion
Temperature High      :      158 deg F
Temperature Low      :      -40 deg F
  • Higher temperature urethane construction tube
  • Static dissipating thermoplastic alloyed blend of nitrile, polyurethane and PVC cover
  • Static wire for static dissipation

Applications: Heavy-duty abrasion-resistant suction hose used for a variety of abrasive material handling applications, including the transfer of sand, gravel, cement, fly ash, glass, metals, plastic pellets, fertilizers, rock salts and slurries

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Continental_20686517_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/ContiTech_20447688_SS.pdf
