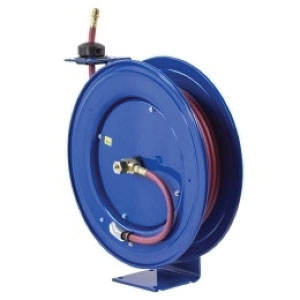

Coxreels Super Hub™ SH Series Powder-Coated Steel Hose Reel
Coxreels Super Hub™ SH Powder-Coated Heavy-Duty Steel Hose Reel, 1/2 in ID x 3/4 in OD, 50 ft L, 300 psi
-
ARGPN: SHL-N-450
-
-
Hose Length:
-
Hose Inside Diameter:
-
Hose Outside Diameter:
-
Hose Length:
Coxreels Super Hub™ Hose Reel, Series: SH, 50 ft Length Hose, 1/2 in Hose Inside Diameter, 3/4 in Hose Outside Diameter, Nominal Size: 1/2 in, Winding Method: Spring Return, Material Construction: Heavy-Duty Steel, Finish: Powder-Coated, 300 psi, Dimensions: 19-1/2 in L x 8-1/4 in W x 21-1/4 in H
California residents see Prop 65 WARNINGS
| Dimensions | : | 19-1/2 in L x 8-1/4 in W x 21-1/4 in H |
| Finish | : | Powder-Coated |
| Hose Inside Diameter | : | 1/2 in |
| Hose Length | : | 50 ft |
| Hose Outside Diameter | : | 3/4 in |
| Material | : | Steel |
| Material Construction | : | Heavy-Duty Steel |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 300 psi |
| Product Type | : | Hose Reel |
| Series | : | SH |
| Sub Brand | : | Super Hub™ |
| Winding Method | : | Spring Return |
Coxreels SH Series Super Hub™ spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- External fluid path with machined from solid brass 90 deg full-flow NPT swivel inlet
- Guide arm adjusts to wall, floor, vehicle and overhead positions
- 1 in solid steel axle and lubricated precision bearings for smooth rotation
- Enclosed factory tuned and matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl and zinc-plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
- Machined from solid brass 90 deg full-flow NPT swivel for simple seal maintenance, fast and easy hose installation
- Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
- Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- Sturdy single pedestal design with solid 1-piece steel base and support post, no weld, for maximum stability
- Exclusive Super Hub™ dual axle support system
- Versatile guide arm adjusts to wall, floor, ceiling and vehicle-mounting positions
- Long-lasting, chip-resistant and rust inhibiting CPC powder coat finish
- Adjustable solid rubber hose stop and sturdy permanently lubricated precision bearings
- Made in USA
Warranty: 2 Years
Applications: Air, chemical fluid transfer, grease/hydraulics, oil/lubrication, pavement, pressure washing, wash down and water
