Crosby® 1021110 1021110

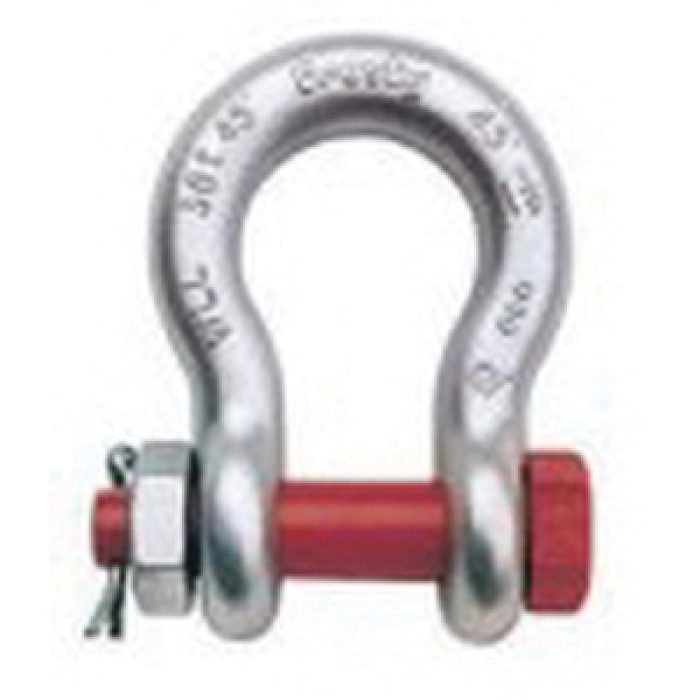

Crosby® G-2140 Red Hot Dipped Galvanized Alloy Steel Bolt Pin Chain Shackle

Crosby® G-2140 Bolt Pin Chain Shackle, Hot-Dipped Galvanized, Red, Alloy Steel

  • ARGPN: 1021110 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Crosby® Bolt Pin Chain Shackle, Series: G-2140, Load Capacity: 30 ton, Size: 1-1/2 in, 41.4 mm Pin Diameter, Bolt Pin, Inside Length: 146 mm, Inside Width: 98.6 mm, 60.5 mm Opening, Eye Outer Size: 91.9 mm, Material Construction: Alloy Steel, Finish: Hot-Dipped Galvanized, Red, 254 mm Length, 196 mm Width

    Color      :      Red
    Eye Outer Size      :      91.9 mm
    Finish      :      Hot-Dipped Galvanized
    Industry Category      :      Slings and Shackles
    Inside Length      :      146 mm
    Inside Width      :      98.6 mm
    Length      :      254 mm
    Load Capacity      :      30 ton
    Material      :      Steel
    Material Construction      :      Alloy Steel
    Opening Size      :      60.5 mm
    Pin Diameter      :      41.4 mm
    Pin Type      :      Bolt
    Product Type      :      Chain Shackle
    Series      :      G-2140
    Size      :      1-1/2 in
    Width      :      196 mm
    • Alloy bows, alloy bolts
    • Working load limit permanently shown on every shackle
    • All sizes are RFID equipped
    • Approved for use at -40 to 204 deg C
    • Shackles can meet charpy requirements of 42 Joules (31 ft-lbf) avg at -20 deg C (-4 deg F) upon special request
    • Look for the Red Pin® the mark of genuine Crosby® quality
    • Quenched and tempered
    • Load-rated
    • Quic-Check®
    • TA type approved
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1021020_CAT_NEW2021.pdf
