Crosby® 1020540

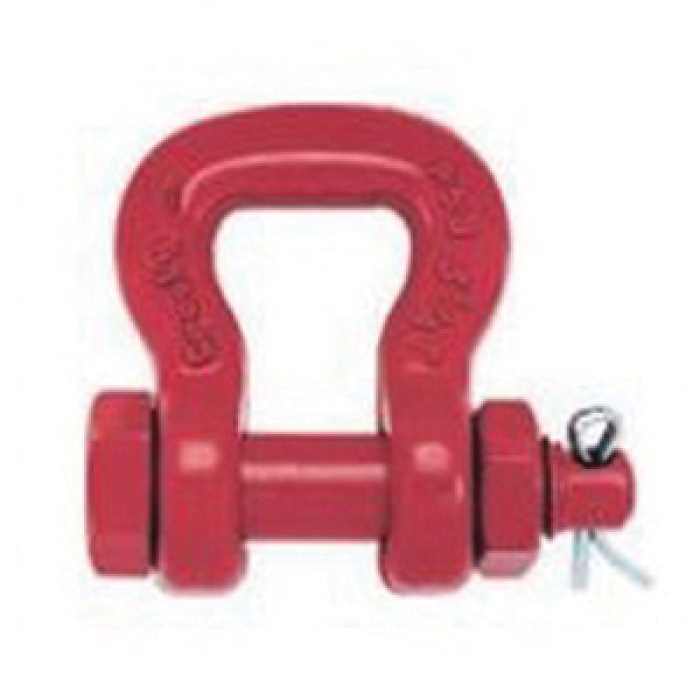

Crosby® Sling Saver® S-252 Red Alloy Steel Bolt Pin Web Sling Shackle, 5 in, 35 ton

  • Manufacturer: Crosby Group
  • Brand: Crosby®
  • ARGPN: 1020540
  • MPN: 1020540
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Crosby® Sling Saver® Bolt Pin Web Sling Shackle, Series: S-252, Load Capacity: 35 ton, Size: 5 in, 51 mm Pin Diameter, Bolt Pin, Inside Length: 161 mm, Inside Width: 140 mm, 63.5 mm Opening, Eye Outer Size: 106 mm, Material Construction: Alloy Steel, Finish: Self-Colored, Red, 292 mm Length, 236 mm Width

Color      :      Red
Eye Outer Size      :      106 mm
Finish      :      Self-Colored
Inside Length      :      161 mm
Inside Width      :      140 mm
Length      :      292 mm
Load Capacity      :      35 ton
Material      :      Steel
Material Construction      :      Alloy Steel
Opening Size      :      63.5 mm
Pin Diameter      :      51 mm
Pin Type      :      Bolt
Product Type      :      Web Sling Shackle
Series      :      S-252
Size      :      5 in
Sub Brand      :      Sling Saver®
Width      :      236 mm
  • 5:1 design factor
  • Each shackle has a product identification code (PIC) for material traceability along with a working load limit and the name Crosby® forged into it
  • Increased radius of bow gives wider sling bearing surface resulting in an increased area for load distribution
  • Increasing synthetic sling efficiency as compared to standard anchor and chain shackle bows and conventional hooks, this allows 100% of the slings-rated working load limit to be achieved
  • Allows better load distribution on internal fibers
  • Bolt (pin) has a larger diameter that provides better load distribution
  • Look for the Red Pin® the mark of genuine Crosby® quality
  • Fatigue-rated
  • Load-rated
  • Quenched and tempered
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1020485_CAT_NEW2021.pdf
