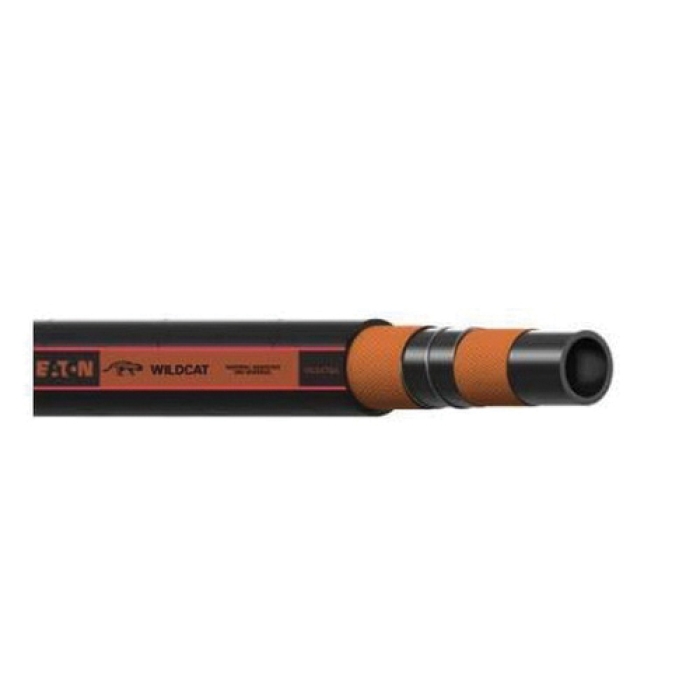

Danfoss Blended SBR/Natural Rubber Material Handling Hose
The Danfoss Material Handling Hose is designed for efficient dry bulk transfer applications. Constructed with a blended SBR/natural rubber tube, SBR cover, and reinforced with 2-ply fiber and dual helical wires, this hose delivers superior abrasion, aging, and weather resistance. With a 100 psi pressure rating, 9-inch bend radius, and temperature range of -10°F to 160°F, it offers durability and flexibility for material handling tasks in challenging environments.
-
ARGPN: H034764-100
-
-
Nominal Size:
-
Nominal Size:
Danfoss Material Handling Hose, Nominal Size: 4 in, 5 in OD, 4 in ID, 1 ft Length, 100 psi, Material Construction: Blended SBR/Natural Rubber, SBR Cover, Construction: 2-Ply Fiber and Dual Helical Wires, Black, 11 in Bend Radius, Resistance Properties: Abrasion, Aging, Weather, -10 deg F Low, 160 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 11 in |
| Color | : | Black |
| Construction | : | 2-Ply Fiber and Dual Helical Wires |
| Cover Material | : | SBR |
| Inside Diameter | : | 4 in |
| Length | : | 100 ft |
| Material | : | Nitrile |
| Material Construction | : | Blended SBR/Natural Rubber |
| Nominal Size | : | 4 in |
| Outside Diameter | : | 5 in |
| Pressure Rating | : | 100 psi |
| Product Type | : | Material Handling Hose |
| Resistance Properties | : | Abrasion, Aging, Weather |
| Temperature High | : | 160 deg F |
| Temperature Low | : | -10 deg F |
Applications: Dry bulk transfer
