Dixon® 2741012C FP-10-12

Dixon® 2741012C

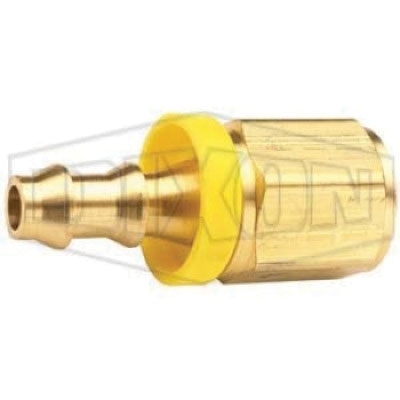

Dixon® 2741012C Brass Push-On Hose Barb with Plastic Cap, 5/8 in Hose Barb x 3/4 in FNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: FP-10-12
  • MPN: 2741012C
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Push-On Hose Barb with Plastic Cap, Connection Type 1: Hose Barb, Connection Size 1: 5/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-1/16 in, 350 psi, Material Construction: Brass, Dimensions: 2.24 in L, -40 to 150 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      5/8 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      NPTF
Dimensions      :      2.24 in L
Gender 2      :      Female
Hex Size      :      1-1/16 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      350 psi
Shape      :      Hose Barb
Temperature Rating      :      -40 to 150 deg F
Thread Size 2      :      3/4-14
Dry sealYellow plastic capInstructions: Assembly instructions: 1. Trim hose end with smooth square cut.2. Lubricate either push-on fitting, hose or both.3. Insert push-on fitting into hose until first barb is in hose.4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end.Push with a steady force until end of hose is covered by yellow plastic cap.Disassembly instructions: 1. Leaving push-on fitting in place, make a 1 in cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.Safety Notes: Dixon® push-on fittings are intended for use with Lok-On (push-on style) hose only. Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2741012C_SS.pdf
  • SDS https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2781012C_SDS.pdf
