Dixon® H5221-A-BU H5221-A-BU

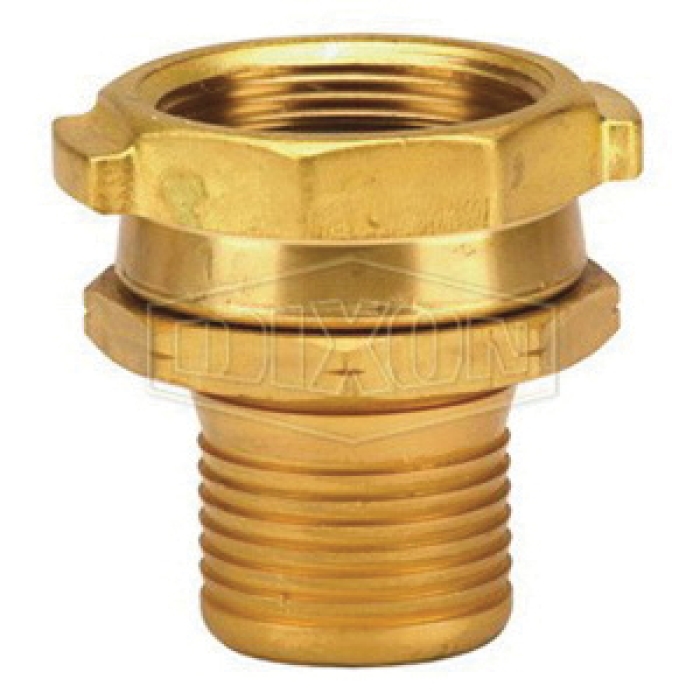

Dixon® 520-H Brass FNPSH Permanently Attached Petroleum Coupling

Dixon® 520-H Permanently Attached Petroleum Coupling, NPSH X NPSH, Brass

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Permanently Attached Petroleum Coupling, Series: 520-H, Connection Type 1: NPSH, Gender 1: Female, Connection Size 1: 1-1/4 in, Connection Type 2: NPSH, Gender 2: Female, Connection Size 2: 1-1/4 in, Material Construction: Brass, For Use With: Internally Expanding Permanent Coupling-Scovill Style, 2-9/16 in Length

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1-1/4 in
    Connection Size 2      :      1-1/4 in
    Connection Type 1      :      NPSH
    Connection Type 2      :      NPSH
    For Use With      :      Internally Expanding Permanent Coupling-Scovill Style
    Gender 1      :      Female
    Gender 2      :      Female
    Length      :      2-9/16 in
    Material      :      Brass
    Material Construction      :      Brass
    Series      :      520-H
    Shape      :      Coupling
    • Female has octagonal facets for tightening with a wrench
    • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area
    • Couplings are compact, light and streamlined to eliminate catching on curbs and shrubs
    • Couplings are pre-lubricated for assembly
    • Stems are machined from bar stock or solid brass forgings

    Applications: For discharge and suction service and commonly used in the transfer of fuel to homes, airplanes, ships, internal expansion only

    Safety Notes:

    • Do not interchange with other manufacturer's fittings.
    • Designed for internal expansion only.
    • Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system.
    • Do not use a wrench or vice on ferrule.
    • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
    • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
    • Consult Dixon® for recommendations on usage.
    • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
    • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
    • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
    • Media being transported through the hose should be compatible with the stem material.
    • Compatibility of ferrule material with the environment in which it will be used is recommended.
    • Consult the Compatibility Chart or the Dixon® factory for material compatibility.
    • For applications other than the ones list, please consult Dixon®.
