Dixon® H5752 H5752

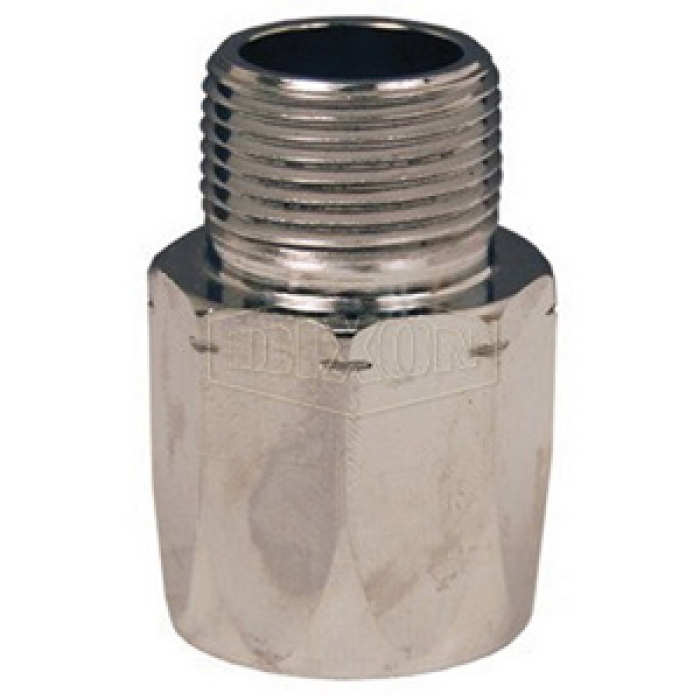

Dixon® 570-H Chrome-Plated Brass Permanent Pump Hose Coupling

Dixon® Permanent Pump Hose Coupling, Hose X NPT, Chrome-Plated, Brass

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Permanent Pump Hose Coupling, Connection Type 1: Hose, Connection Size 1: 1-11/64 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/4 in, Material Construction: Brass, Finish: Chrome-Plated

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1-11/64 in
    Connection Size 2      :      3/4 in
    Connection Type 1      :      Hose
    Connection Type 2      :      NPT
    Finish      :      Chrome-Plated
    Gender 2      :      Male
    Industry Category      :      Hydraulic Quick Disconnects
    Material      :      Brass
    Material Construction      :      Brass
    Shape      :      Hose Coupling
    • Serrations on the stem become imbedded in the hose eliminating wicking and leakage
    • The shell extends beyond the stem to prevent cutting of interior walls
    • Tapered ends of stem and shell protect hose when flexed
    • Couplings provide tamper-proof static connection which cannot be broken without completely damaging coupling and hose
    • Internal expansion of stem to nominal ID of hose provides full flow
    • Broad, firm grip of coupling extends hose life by making it possible for hose to withstand more flexing
    • Economical and trouble-free

    Safety Notes: Reattach static wire if required.

  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_SS.pdf
