Dixon® RAM8 RAM8

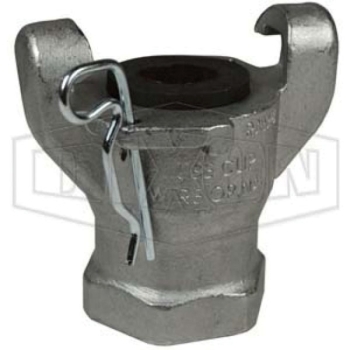

Dixon® Air King™ 316 Stainless Steel FNPT 2-Lug Hose End

Dixon® Air King™ RAM8 316 Stainless Steel 2-Lug Hose End, 3/4 in FNPT

  • ARGPN: RAM8 loading
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • Sold As: 50/PK
  • Add to cart
    Add To Favorites
pin-int

Dixon® Air King™ 2-Lug Hose End, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 3/4 in, Hex Size: 3/8 in, 150 psi, Material Construction: 316 Stainless Steel, Dimensions: 2-3/16 in L x 2-1/2 in W, 70 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/4 in
Connection Type 1      :      NPT
Dimensions      :      2-3/16 in L x 2-1/2 in W
Gender 1      :      Female
Hex Size      :      3/8 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      150 psi
Shape      :      Hose End
Sub Brand      :      Air King™
Temperature Rating      :      70 deg F
Includes safety clipSupplied with rubber washer AWR4Rubber sealUse of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in placeOnly one Air King™ safety clip or wire-type retainer is required for each Air King™ universal couplingAir King™ meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633DApplications: For air and water service only
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RAM11_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RAM8_TD.pdf
