Dixon® SCM28 SCM28

Dixon® Brass Speed Control Muffler

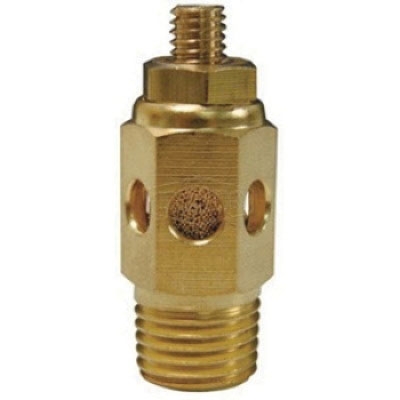

Dixon® SCM28 Brass Speed Control Muffler, 1/4 in NPT

pin-int

Dixon® Speed Control Muffler, Nominal Size: 1/4 in, Connection Type: NPT, Material Construction: Brass, 300 psi, Dimensions: 1-9/16 in H, 35 - 300 deg F

California residents see Prop 65 WARNINGS

Connection Type      :      NPT
Dimensions      :      1-9/16 in H
Material      :      Brass
Material Construction      :      Brass
Nominal Size      :      1/4 in
Pressure Rating      :      300 psi
Product Type      :      Muffler
Temperature Rating      :      35 - 300 deg F
Safe and infinite variations of metering air flow at acceptable sound levels on exhaust ports of air valvesSpeed of an operating cylinder or air tool may be increased or decreased with the adjusting screw, the final position is then locked in place by the lock nutExhaust air noise is eliminated by the surrounding sleeve of sintered bronze
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_CMF68_SS.pdf
