Dixon® 69NAB34VS 1469-03-04

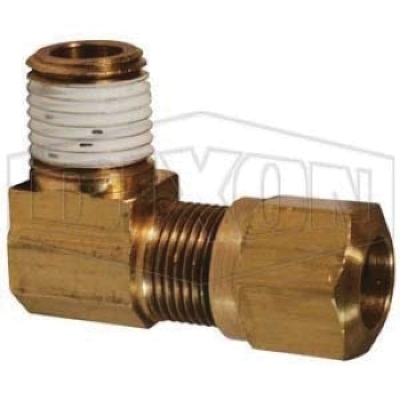

Dixon® Brass Tube x Male Threaded Air Brake Elbow

Dixon® 69NAB34VS Brass Compression Air Brake Elbow, 3/16 in Tube x 1/4 in Male Threaded

  • ARGPN: 1469-03-04 loading
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Compression Air Brake Elbow, Connection Type 1: Tube, Connection Size 1: 3/16 in, Thread Size 1: 5/16-24, Connection Type 2: Threaded, Gender 2: Male, Connection Size 2: 1/4 in, 150 psi, Material Construction: Brass, Dimension Standards: SAE J246, SAE 100202 BA, -40 to 200 deg F, For Use With: SAE J844 Type A and B Tubing

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      3/16 in
    Connection Size 2      :      1/4 in
    Connection Type 1      :      Tube
    Connection Type 2      :      Threaded
    Dimension Standards      :      SAE J246, SAE 100202 BA
    For Use With      :      SAE J844 Type A and B Tubing
    Gender 2      :      Male
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      150 psi
    Shape      :      Elbow
    Temperature Rating      :      -40 to 200 deg F
    Thread Size 1      :      5/16-24
    • Positive grip
    • Machined from CA260, CA345 or CA377 brass
    • Pre-applied thread sealant
    • Thread sealant may be white or burnt orange
    • Utilize ribbed sleeve for compression and positive grip

    Instructions: Cut tubing squarely maximum of 15 deg angle allowable.

  • Check that port or mating part is clean and free of debris.
  • Insert tubing into fittings until it bottoms on seat.
  • Tighten nut with wrench until one thread remains visible on the fittings body, (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench tightened according to the tube size used.

    Applications: For use in air brake systems or cab controls

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_69NAB32VS_SS.pdf
    • SDS https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_69NAB32VS_SDS.pdf
