Dixon® HT8F8 HT8F8

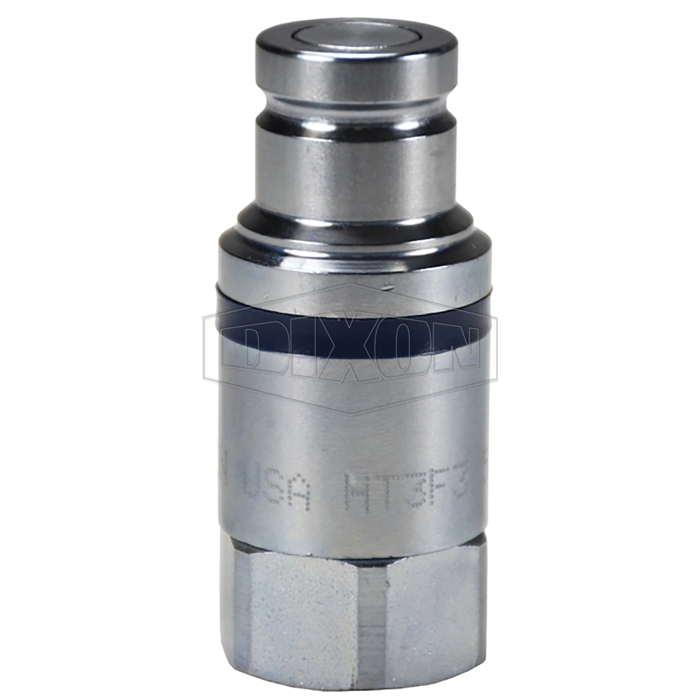

Dixon® Correct Connect™ HT Series Steel Flushface Female Threaded Plug

Dixon® Correct Connect™ HT Flushface Plug, Quick Disconnect X NPTF, Steel, 5000 psi

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Correct Connect™ Flushface Plug, Series: HT, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-3/4 in, 5000 psi, Material Construction: Steel, Dimensions: 1.96 in OD x 3.5 in L

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      1.96 in OD x 3.5 in L
    Gender 2      :      Female
    Hex Size      :      1-3/4 in
    Industry Category      :      Hydraulic Quick Disconnect Couplings
    Material      :      Steel
    Material Construction      :      Steel
    Pressure Rating      :      5000 psi
    Series      :      HT
    Shape      :      Plug
    Sub Brand      :      Correct Connect™
    Thread Size 2      :      1-11-1/2
    • High flow performance, compact profile
    • Easily re-buildable
    • High strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
    • Improved sealing system incorporates a high performance molded polyurethane or O-ring energized PTFE valve seal
    • Machined components are manufactured using solid bar stock
    • Steel nipples are hardened to provide resistance to brinelling during impulse service
    • Has nitrile-energized PTFE valve seals, with a temperature range of -40 to 250 deg F
    • Ancillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
    • PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
    • Interchangeable to ISO16028
    • Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-Tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HT6F6_CAT.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HT6F6_II.pdf
