Dixon® 3HTF3 3HTF3

Dixon® 3HTF3

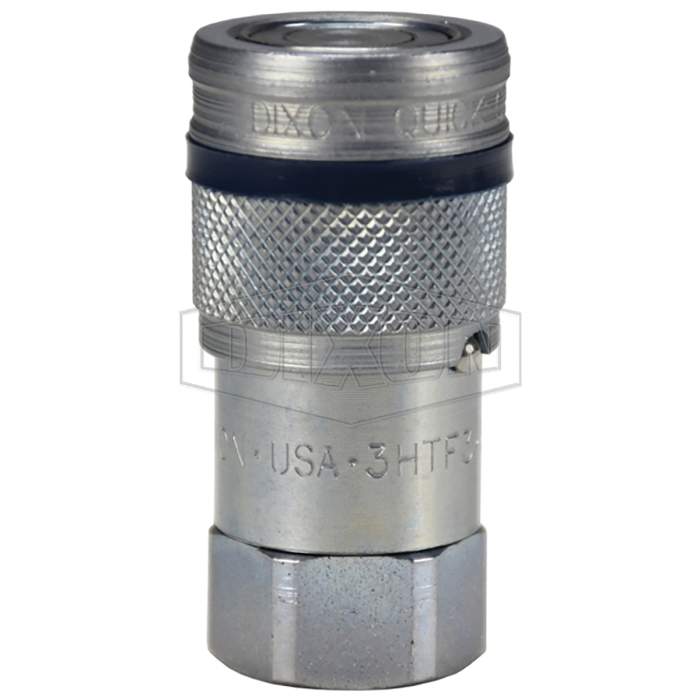

Dixon® Correct Connect™ HT Series Trivalent Chrome-Plated Steel Flushface Interchange Coupler, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 3HTF3
  • MPN: 3HTF3
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Correct Connect™ Flushface Interchange Coupler, Series: HT, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, 5000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2-1/2 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2-1/2 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Female
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5000 psi
Series      :      HT
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      3/8-18
High-flow performance, compact profileEasily re-buildableDORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditionsMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeCouplers have polyurethane valve stem O-ring, with a temperature range of -65 to 212 deg FAncillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg FPTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damageInterchangeable to ISO16028Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-Tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMCApplications: For oilfield, industrial hydraulic and construction
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2HTDP_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2HTF2_SS.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4HTF4_II.pdf
