Dixon® 8HTF8 8HTF8

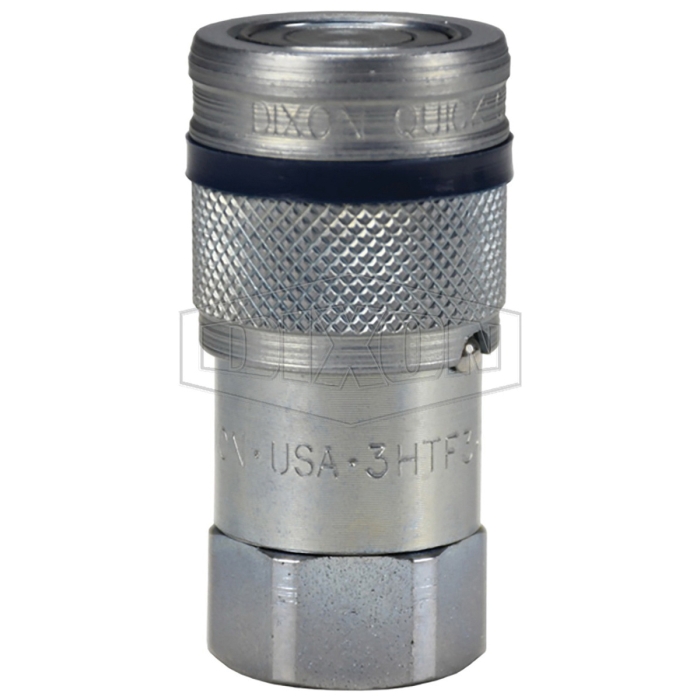

Dixon® Correct Connect™ HT Series Trivalent Chrome-Plated Steel Quick Disconnect x FNPTF Flushface Interchange Coupler

Dixon® Correct Connect™ HT Flushface Interchange Coupler, Quick Disconnect X NPTF, Trivalent Chrome-Plated, Steel, 5000 psi

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Correct Connect™ Flushface Interchange Coupler, Series: HT, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-3/4 in, 5000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 4.24 in L, -40 to 250 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      4.24 in L
    Finish      :      Trivalent Chrome-Plated
    Gender 2      :      Female
    Hex Size      :      1-3/4 in
    Industry Category      :      Hydraulic Quick Disconnect Couplings
    Material      :      Steel
    Material Construction      :      Steel
    Pressure Rating      :      5000 psi
    Series      :      HT
    Shape      :      Coupler
    Sub Brand      :      Correct Connect™
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      1-11-1/2
    • High-flow performance, compact profile
    • Easily re-buildable
    • DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
    • Machined components are manufactured using solid bar stock
    • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
    • Steel componentry is plated using RoHS compliant trivalent chrome
    • Steel coupler sleeves are hardened to resist deformation and maximize service life
    • Couplers have polyurethane valve stem O-ring, with a temperature range of -65 to 212 deg F
    • Ancillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
    • PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
    • Interchangeable to ISO16028
    • Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-Tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC

    Applications: For oilfield, industrial hydraulic and construction

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2HTDP_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2HTF2_SS.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4HTF4_II.pdf
