Dixon® D4M4-B D4M4-B

Dixon® D4M4-B

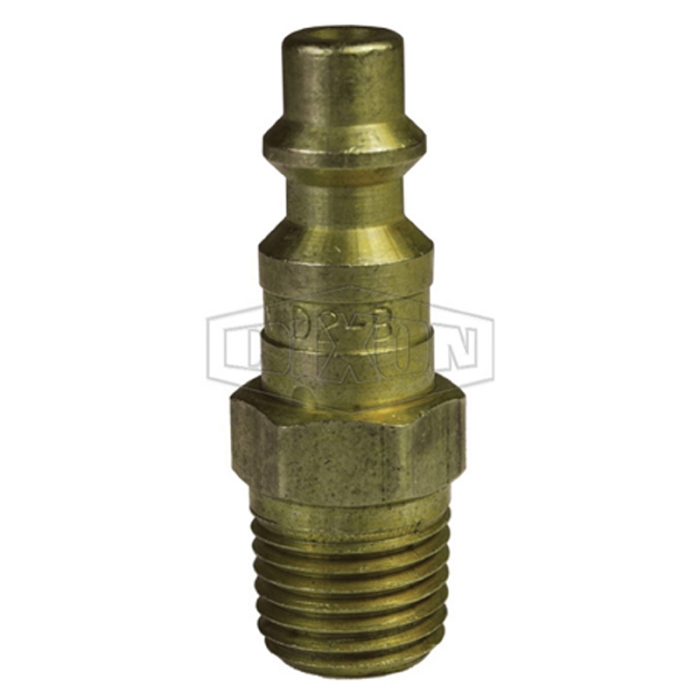

Dixon® DF Series Brass Pneumatic Industrial Interchange Plug, 1/2 in Quick Disconnect x 1/2 in MNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: D4M4-B
  • MPN: D4M4-B
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Pneumatic Industrial Interchange Plug, Series: DF, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 7/8 in, 500 psi, Material Construction: Brass, Dimensions: 2.34 in L x 0.875 in W, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2.34 in L x 0.875 in W
Gender 2      :      Male
Hex Size      :      7/8 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      500 psi
Series      :      DF
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/2-14
Machined components are manufactured using solid bar stockFoster 3, 4, 5 and 6 SeriesParker 30 Series automatic interchange and Parker 20 Series manual interchangeHansen 3000, 4000, 5000 and 6000 and Hansen 1000, 400 and 500Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2DF2-S_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_D2M1_SS.pdf
