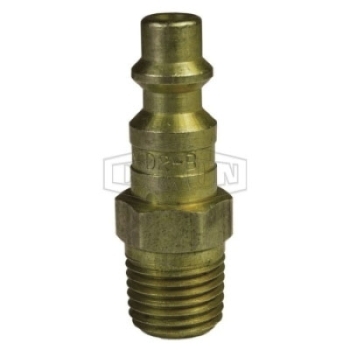

Dixon® DF Series Brass Quick Disconnect x MNPTF Pneumatic Plug

Dixon® DF Series Pneumatic Plug, Brass, Quick Disconnect x MNPTF

  • ARGPN: D4M6-B loading
  • Add to cart
  • Dixon® Pneumatic Industrial Interchange Plug, Series: DF, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-1/16 in, Material Construction: Brass, Dimensions: 1.23 in OD x 2.5 in L, -40 to 250 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Size 2      :      3/4 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      1.23 in OD x 2.5 in L
    Gender 2      :      Male
    Hex Size      :      1-1/16 in
    Material      :      Brass
    Material Construction      :      Brass
    Series      :      DF
    Shape      :      Plug
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      3/4-14
    • Machined components are manufactured using solid bar stock
    • Foster 3, 4, 5 and 6 Series
    • Parker 30 Series automatic interchange and Parker 20 Series manual interchange
    • Hansen 3000, 4000, 5000 and 6000 and Hansen 1000, 400 and 500

    Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
