Dixon® 4N4N 4N4N

Dixon® 4N4N

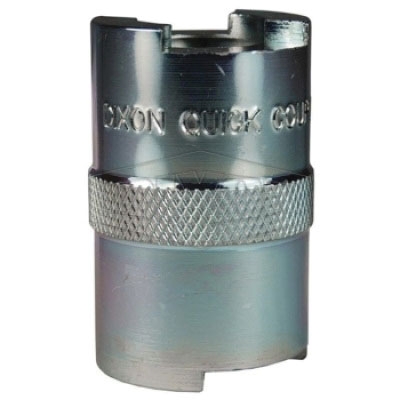

Dixon® Dix-Lock™ N Series Steel Interchange Gender Change Union, 1/2 in Female Quick Disconnect

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 4N4N
  • MPN: 4N4N
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Dix-Lock™ Interchange Gender Change Union, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: Quick Disconnect, Gender 2: Female, Connection Size 2: 1/2 in, Material Construction: Steel, Dimensions: 1.33 in OD x 3.26 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Quick Disconnect
Dimensions      :      1.33 in OD x 3.26 in L
Gender 1      :      Female
Gender 2      :      Female
Material      :      Steel
Material Construction      :      Steel
Series      :      N
Shape      :      Union
Sub Brand      :      Dix-Lock™
Temperature Rating      :      -40 to 250 deg F
Machined components are manufactured using solid bar stockBowes interchange Bayonet style, interchangeable with Bowes 51000 series, national Series 'B', MacDonald quick-action, Campbell single-lockConforms to MIL-C-3486 and A-A-50431A standardsSafety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
