Dixon® 4NM8

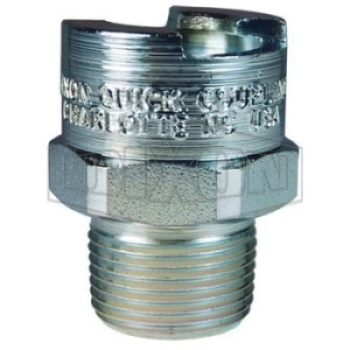

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Interchange Coupler, 1/2 in Female Quick Disconnect x 1 in MNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 4NM8
  • MPN: 4NM8
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Dix-Lock™ Interchange Coupler, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1 in, Hex Size: 1-1/2 in, 500 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.5 in OD x 1.85 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.5 in OD x 1.85 in L
Finish      :      Trivalent Chrome-Plated
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      1-1/2 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      500 psi
Series      :      N
Shape      :      Coupler
Sub Brand      :      Dix-Lock™
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Conforms to MIL-C-3486 and A-A-50431A standards
  • Bowes interchange bayonet style
  • Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lock

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4NF3_CAT.pdf
