Dixon® N4S6-LS N4S6-LS

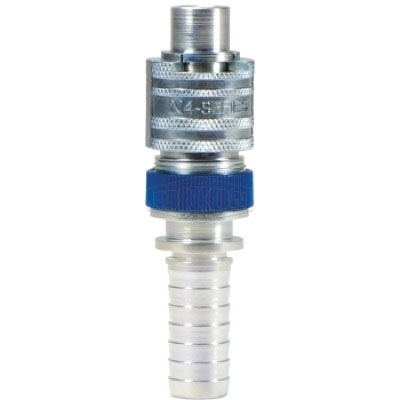

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Interchange Safety-Lock Plug

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Interchange Safety-Lock Plug, 1/2 in Male Quick Disconnect x 3/4 in Hose Barb

  • ARGPN: N4S6-LS loading
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Dix-Lock™ Interchange Safety-Lock Plug, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 3/4 in, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.4 in OD x 4.95 in L, -40 to 250 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Size 2      :      3/4 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      Hose Barb
    Dimensions      :      1.4 in OD x 4.95 in L
    Finish      :      Trivalent Chrome-Plated
    Gender 1      :      Male
    Material      :      Steel
    Material Construction      :      Steel
    Series      :      N
    Shape      :      Plug
    Sub Brand      :      Dix-Lock™
    Temperature Rating      :      -40 to 250 deg F
    • Machined components are manufactured using solid bar stock
    • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life
    • Steel componentry is plated using RoHS compliant trivalent chrome
    • Coupling sleeve constructed of cast zinc steel
    • Aluminum lock ring
    • Bowes interchange bayonet style
    • Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock

    Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.

  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3NCS4_CAT.pdf
