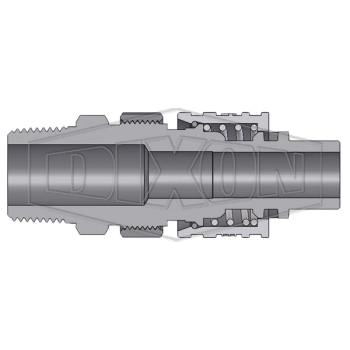

Dixon® N4M4-LS N4M4-LS

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Male Quick Disconnect x MNPTF Interchange Safety-Lock End Plug

Dixon® Dix-Lock™ N Series Trivalent Interchange Safety-Lock End Plug, Chrome-Plated Steel, Male Quick Disconnect x MNPTF

  • ARGPN: N4M4-LS loading
pin-int

Dixon® Dix-Lock™ Interchange Safety-Lock End Plug, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Hex Size: 1-3/16 in, 500 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.31 in OD x 3.65 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.31 in OD x 3.65 in L
Finish      :      Trivalent Chrome-Plated
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1-3/16 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      500 psi
Series      :      N
Shape      :      End Plug
Sub Brand      :      Dix-Lock™
Temperature Rating      :      -40 to 250 deg F
Machined components are manufactured using solid bar stockStainless steel retaining ring and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeCoupling sleeve constructed of cast zinc steelAluminum lock ringBowes interchange bayonet styleInterchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lockSafety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.Applications: For full flow coupling used on utility, air, water and nitrogen lines
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3NCS4_CAT.pdf
