Dixon® 4PS8

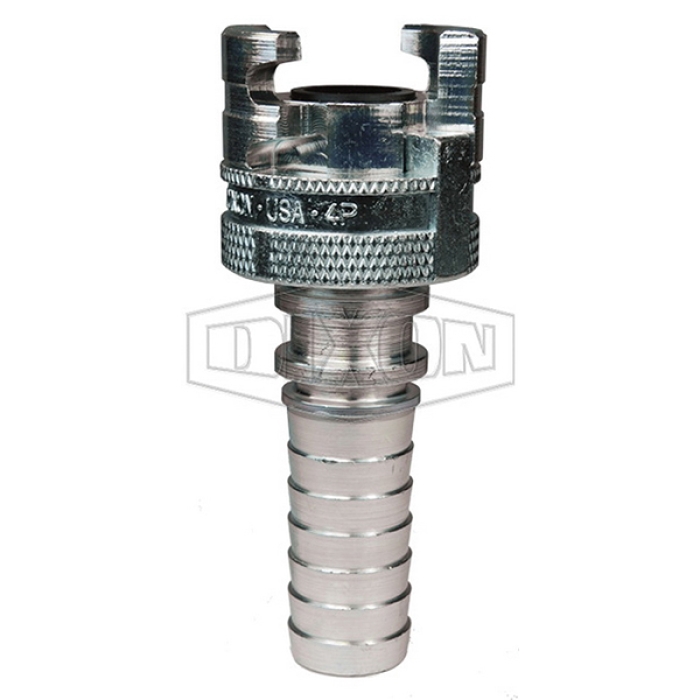

Dixon® Dual-Lock™ P Series Plated Steel Thor Interchange Coupler, 1/2 in Quick Disconnect x 1 in Hose Barb

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 4PS8
  • MPN: 4PS8
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Dual-Lock™ Thor Interchange Coupler, Series: P, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 1 in, 300 psi, Material Construction: Steel, Finish: Plated, Dimensions: 1.55 in Dia x 6.06 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Dimensions      :      1.55 in Dia x 6.06 in L
Finish      :      Plated
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      300 psi
Series      :      P
Shape      :      Coupler
Sub Brand      :      Dual-Lock™
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Nitrile (Buna-N) seals are standard
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life on the 1-piece sleeve
  • 2-piece sleeve has a phosphor bronze spring
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Zinc cast sleeve
  • Thor Finger-Lock interchange
  • Interchanges with National A-type, Campbell double-lock and Thor PHC Series couplings

Applications: For utility air, water and nitrogen lines

Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.

  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4PS8_CAT.pdf
