Dixon® P4M6 P4M6

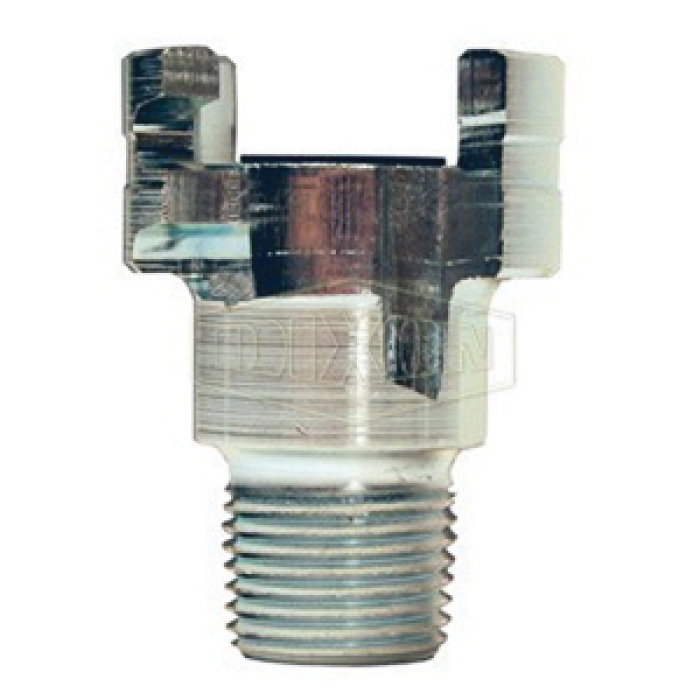

Dixon® Dual-Lock™ P Series Steel Quick Disconnect x MNPTF Thor Interchange Pneumatic Coupling

Dixon® Dual-Lock™ P Series Thor Interchange Pneumatic Plug, Quick Disconnect X NPTF, Steel, 300 psi

  • ARGPN: P4M6 loading
pin-int

Dixon® Dual-Lock™ Thor Interchange Pneumatic Plug, Series: P, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, 300 psi, Material Construction: Steel, Dimensions: 1.55 in OD x 2.55 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.55 in OD x 2.55 in L
Gender 2      :      Male
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      300 psi
Series      :      P
Shape      :      Plug
Sub Brand      :      Dual-Lock™
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      3/4-14
Machined components are manufactured using solid bar stockNitrile (Buna-N) seals standardThor Finger-Lock interchangeInterchanges with National A-type, Campbell double-lock and Thor PHC Series couplingsSmooth ID permits full flow paths to toolSpring-loaded interlocking engagementApplications: For full flow coupling used on utility, air, water and nitrogen linesSafety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_P4F3_CAT.pdf
