Dixon® E6F6-S E6F6-S

Dixon® E6F6-S

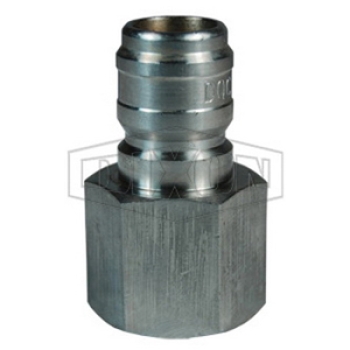

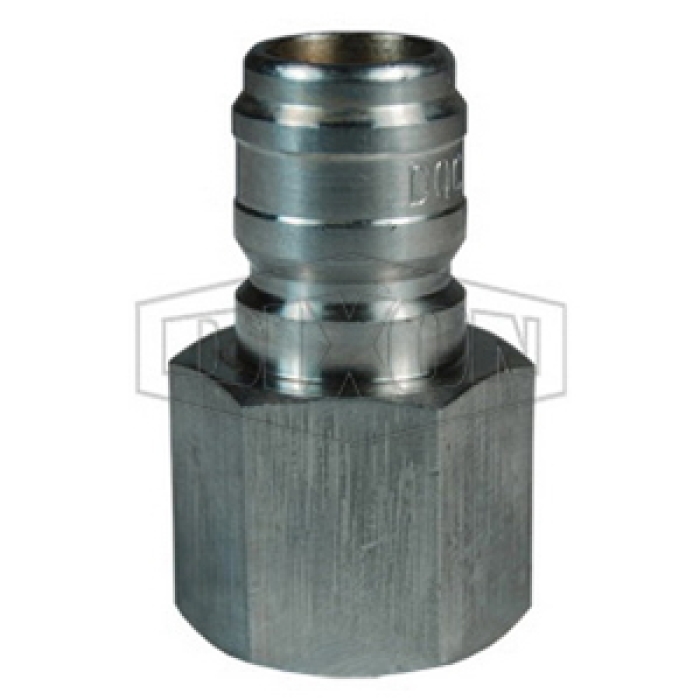

Dixon® E Series 303 Stainless Steel Straight Through Interchange Plug, 3/4 in Quick Disconnect x 3/4 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: E6F6-S
  • MPN: E6F6-S
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Straight Through Interchange Plug, Series: E, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-3/16 in, 3000 psi, Material Construction: 303 Stainless Steel, Dimensions: 1.37 in OD x 2.05 in L

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.37 in OD x 2.05 in L
Gender 2      :      Female
Hex Size      :      1-3/16 in
Material      :      Stainless Steel
Material Construction      :      303 Stainless Steel
Pressure Rating      :      3000 psi
Series      :      E
Shape      :      Plug
Thread Size 2      :      3/4-14
  • Straight-through pressure-wash interchange
  • Interchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
  • These plugs have no internal valves, providing maximum flow with minimum pressure drop
  • Machined components are manufactured using 303 stainless steel bar stock

Safety Notes: Do not disconnect with pressure in line.

  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_8ES8-B_CAT.pdf
