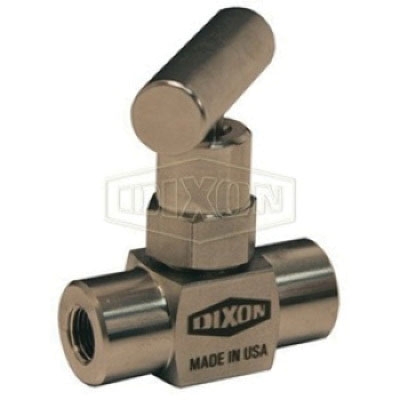

Dixon® FFS102 316 Stainless Steel Mini Needle Valve, 1/4 in FPT, 10000 psi

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: FFS102
  • MPN: FFS102
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Mini Needle Valve, Nominal Size: 1/4 in, Connection Type: FPT, Actuator Type: T-Handle, Material Construction: 316 Stainless Steel, 316 Stainless Steel Trim, FKM Seal, Flow Coefficient: 0.42 Cv, 10000 psi

California residents see Prop 65 WARNINGS

Actuator Type      :      T-Handle
Connection Type      :      FPT
Flow Coefficient      :      0.42 Cv
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Nominal Size      :      1/4 in
Pressure Rating      :      10000 psi
Product Type      :      Needle Valve
Seal Material      :      FKM
Trim Material      :      316 Stainless Steel
A FKM O-ring seal and a PTFE back-up ring below the threads protects the mini valve from corrosion and gallingStem threads are rolled for strength and ease of operationMetal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 psi
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_FFS102_SS.pdf
