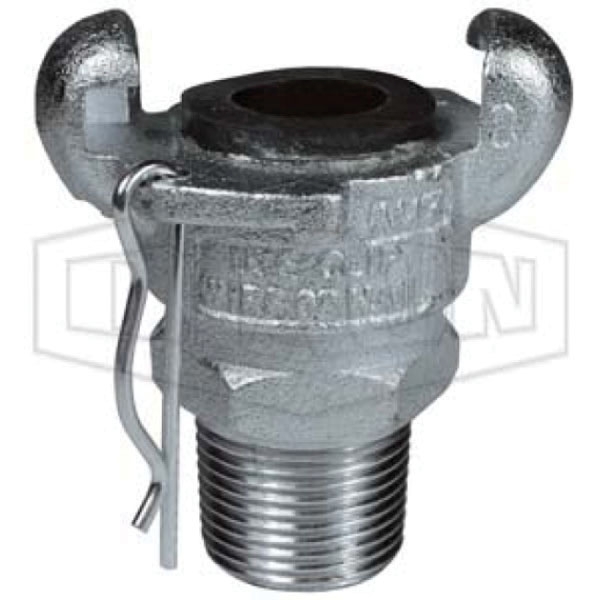

Dixon® Global Air King™ GAM2 Plated Steel 2-Lug Hose End, 1/2 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: GAM2
  • MPN: GAM2
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • Sold As: 25/PK
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Global Air King™ 2-Lug Hose End, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1/2 in, Hex Size: 3-1/32 in, 150 psi, Material Construction: Steel, Finish: Plated, Dimensions: 2-11/16 in L x 2-1/2 in W, 70 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Type 1      :      NPT
Dimensions      :      2-11/16 in L x 2-1/2 in W
Finish      :      Plated
Gender 1      :      Male
Hex Size      :      3-1/32 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      150 psi
Shape      :      Hose End
Sub Brand      :      Global Air King™
Temperature Rating      :      70 deg F
Safety clip includedSupplied with rubber washer AWR4Air King™ meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633DUse of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in placeOnly one Air King™ safety clip or wire-type retainer is required for each Air King™ universal couplingSafety Notes: Air King is for air and water service only.Never use any Air King coupling for steam service!The use of an Air King safety clip or wire-type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose.Pressure rating given at ambient temperature 70 deg F.Applications: For air and water service only
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GAM13_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GAM2_TD.pdf
