Dixon® 2HF2-S 2HF2-S

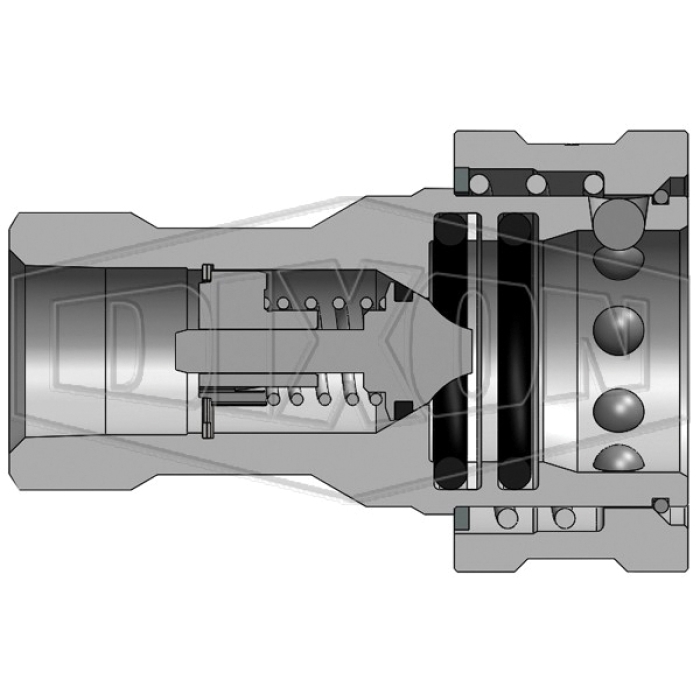

Dixon® H Series 303 Stainless Steel ISO-B Poppet Interchange Valve Coupler

Dixon® H Series ISO-B Poppet Interchange Valve Coupler, Quick Disconnect X NPTF, 303 Stainless Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® ISO-B Poppet Interchange Valve Coupler, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 7/8 in, 3500 psi, Material Construction: 303 Stainless Steel, Dimensions: 2.26 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/4 in
    Connection Size 2      :      1/4 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimension Standards      :      ISO 7241 Series B
    Dimensions      :      2.26 in L
    Gender 2      :      Female
    Hex Size      :      7/8 in
    Industry Category      :      Hydraulic Quick Disconnects
    Material      :      Stainless Steel
    Material Construction      :      303 Stainless Steel
    Pressure Rating      :      3500 psi
    Series      :      H
    Shape      :      Coupler
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      1/4-18
    • Poppet style shut-off valves
    • Machined components are manufactured using solid bar stock
    • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
    • Steel componentry is plated using RoHS compliant trivalent chrome
    • Steel coupler sleeves are hardened to resist deformation and maximize service life
    • Nitrile (Buna-N) seals are standard
    • Redundant O-ring sealing system with PTFE back-up ring
    • Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
    • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_12HDP-A_CAT.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2HF2-S_II.pdf
