Dixon® H3F3-B H3F3-B

Dixon® H3F3-B

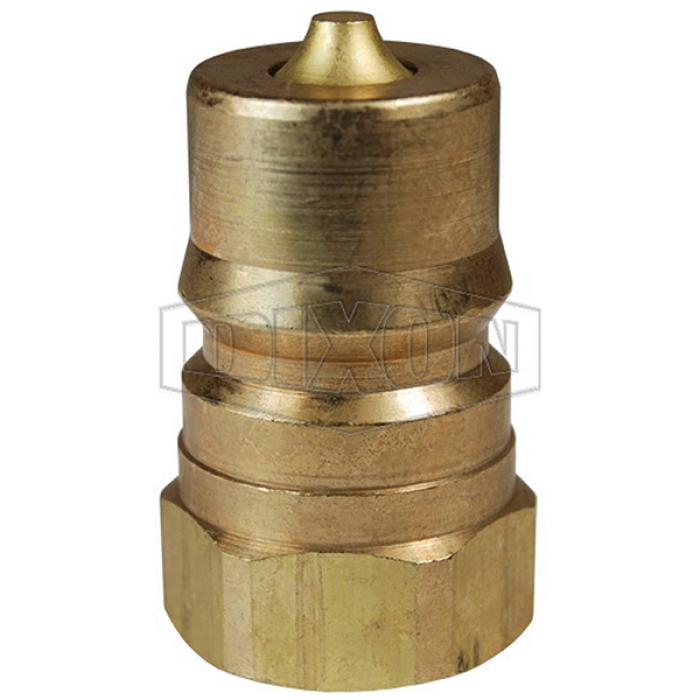

Dixon® H Series Brass ISO-B Interchange Plug, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: H3F3-B
  • MPN: H3F3-B
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® ISO-B Interchange Plug, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 7/8 in, 3000 psi, Material Construction: Brass, Dimensions: 0.97 in OD x 1.7 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Gender 2      :      Female
Hex Size      :      7/8 in
Industry Category      :      Hydrulic Quick Disconnects
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      3000 psi
Series      :      H
Shape      :      Plug
Thread Size 2      :      3/8-18
Poppet style shut-off valvesDesigned to prevent fluid loss when disconnectedMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeInterchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H8DC-A_CAT.pdf
