Dixon® R75AS R75AS

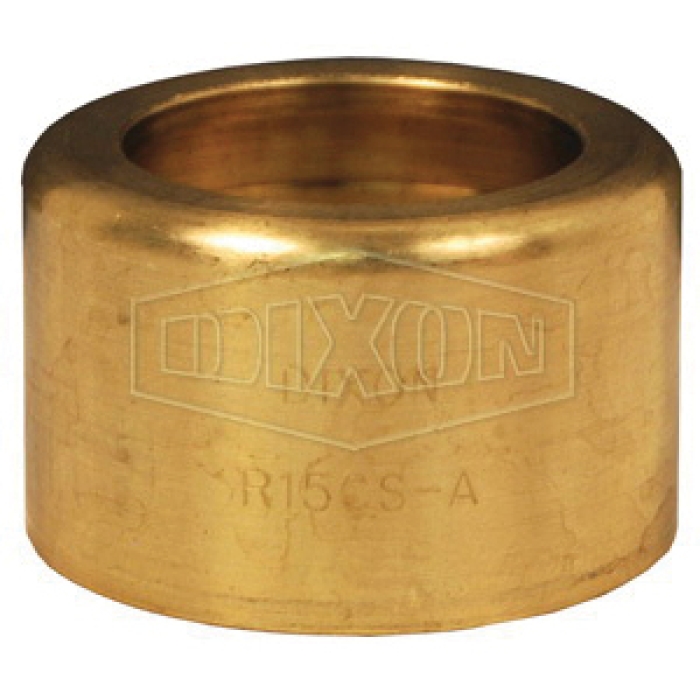

Dixon® Holedall™ 520-H Brass Scovill Style Ferrule

Dixon® Holedall™ 520-H Scovill Style Ferrule, Brass

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Holedall™ Scovill Style Ferrule, Series: 520-H, Nominal Size: 3/4 in, 1-12/64 - 1-14/64 in OD, 1 in Length, Material Construction: Brass, For Use With: Internally Expanded Permanent Brass Couplings

    California residents see Prop 65 WARNINGS

    For Use With      :      Internally Expanded Permanent Brass Couplings
    Length      :      1 in
    Material      :      Brass
    Material Construction      :      Brass
    Nominal Size      :      3/4 in
    Outside Diameter      :      1-12/64 - 1-14/64 in
    Series      :      520-H
    Shape      :      Ferrule
    Sub Brand      :      Holedall™
    • H520 fittings are design for internal expansion only

    Applications: For discharge and suction service, transfer of fuel to airplanes, homes, ships and more

    Safety Notes:

    • Do not interchange with other manufacturer's fittings.
    • Designed for internal expansion only.
    • Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system.
    • Do not use a wrench or vice on ferrule.
    • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
    • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
    • Consult Dixon® for recommendations on usage.
    • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
    • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
    • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
    • Media being transported through the hose should be compatible with the stem material.
    • Compatibility of ferrule material with the environment in which it will be used is recommended.
    • Consult the Compatibility Chart or the Dixon® factory for material compatibility.
    • For applications other than the ones list, please consult Dixon®.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_FM15S15F-D_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_R1375DS_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_R15BS-A_TD.pdf
