Dixon® 4HSF4-S 4HSF4-S

Dixon® 4HSF4-S

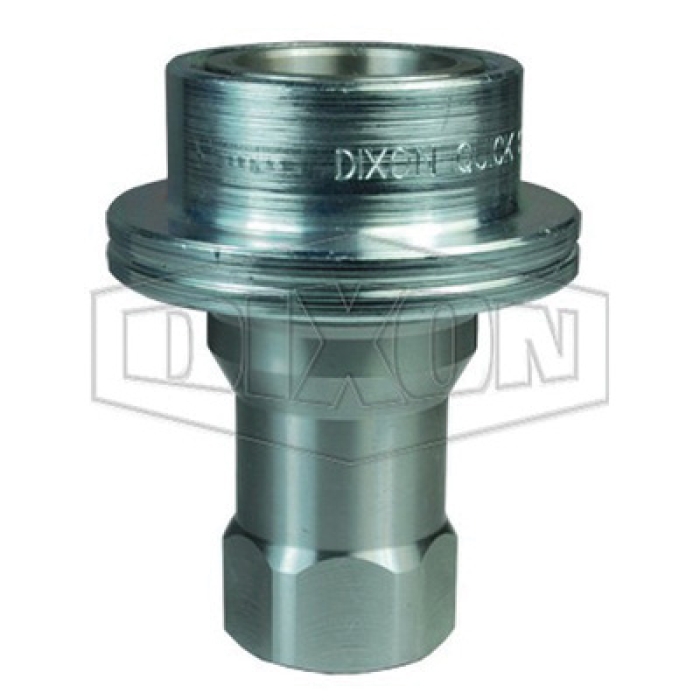

Dixon® HS Series 303 Stainless Steel ISO-B Steam Interchange Coupler, 1/2 in Quick Disconnect x 1/2 in FNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 4HSF4-S
  • MPN: 4HSF4-S
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® ISO-B Steam Interchange Coupler, Series: HS, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/16 in, 200 psi, Material Construction: 303 Stainless Steel, Dimensions: 2.86 in L, -70 to 400 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2.86 in L
Gender 2      :      Female
Hex Size      :      1-1/16 in
Material      :      Stainless Steel
Material Construction      :      303 Stainless Steel
Pressure Rating      :      200 psi
Series      :      HS
Shape      :      Coupler
Temperature Rating      :      -70 to 400 deg F
Thread Size 2      :      1/2-14
Machined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeCoupler has a large-plated steel sleeve designed for easy gripping with glovesSteel componentry is plated using RoHS compliant trivalent chromeEPDM steam-grade seals are standardCouplers have a redundant O-ring sealing system (dual O-rings with PTFE back-up)Valve seals are crimped in place to maintain integrity during excessive flow conditionsSpecial high-temperature EPDM O-rings designed for steam serviceInterchangeable to ISO 7241 Series BParker 60 Series Steam CouplingsApplications: For steam applicationsSafety Notes: Maximum working pressure has been calculated using standard saturated steam at 194 deg C for general-purpose continuous service.For advanced operating pressure or super heated steam applications, contact Dixon® for further information.Do not disconnect under pressure.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HS8BF8_CAT.pdf
