Dixon® K6F6 K6F6

Dixon® K6F6

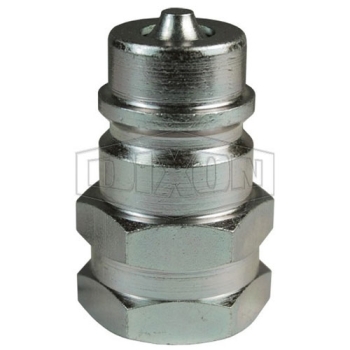

Dixon® K Series Trivalent Chrome-Plated Steel ISO-A Interchange Plug, 3/4 in Quick Disconnect x 3/4 in FNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: K6F6
  • MPN: K6F6
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® ISO-A Interchange Plug, Series: K, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-5/16 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.44 in OD x 2.43 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Gender 2      :      Female
Hex Size      :      1-5/16 in
Industry Category      :      Hydrulic Quick Disconnects~Hydraulic Quick Disconnect Couplings
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      4000 psi
Series      :      K
Shape      :      Plug
Thread Size 2      :      3/4-14
Poppet style shut-off valvesMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel nipples are hardened to provide heavy-duty performance and resist brinellingInterchangeable to ISO7241 Series AParker 6600 Series, Aeroquip/Eaton FD56 (5600)Faster ANV, Hansen HA 15000, Safeway S56 Series
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_16KBF16_CAT.pdf
