Dixon® K8F8 K8F8

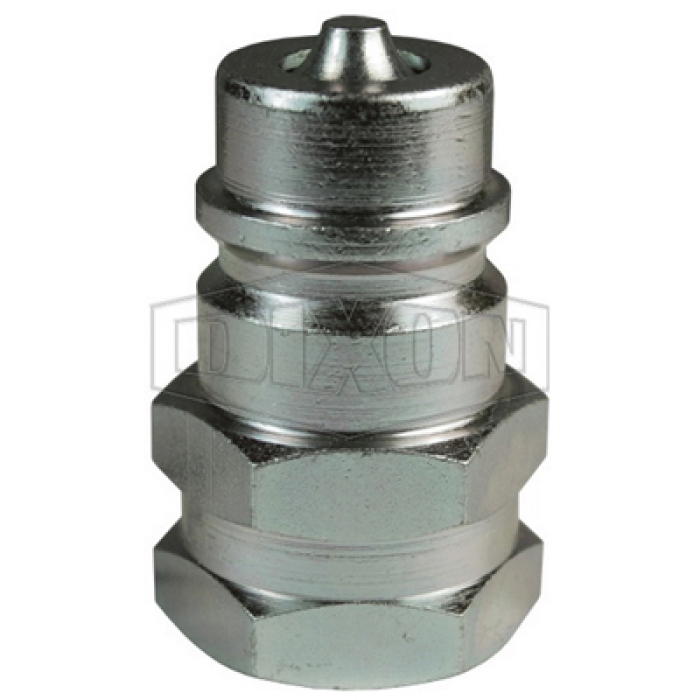

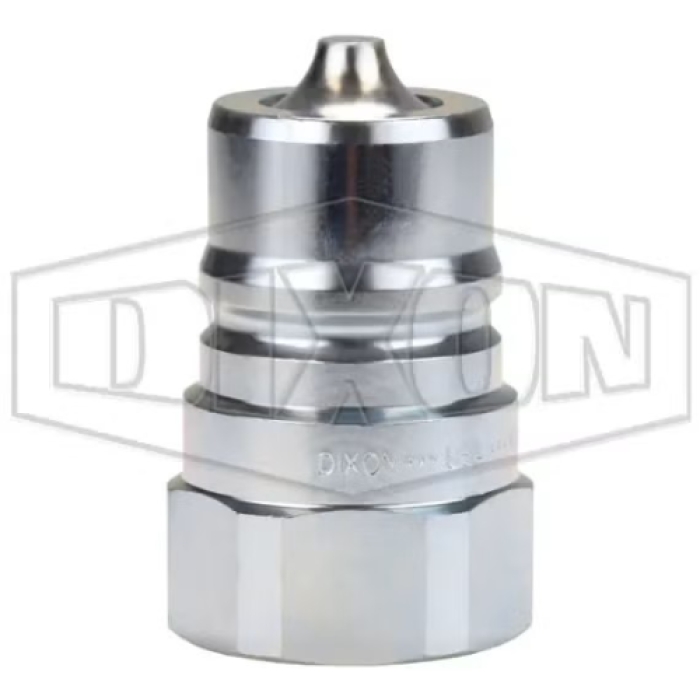

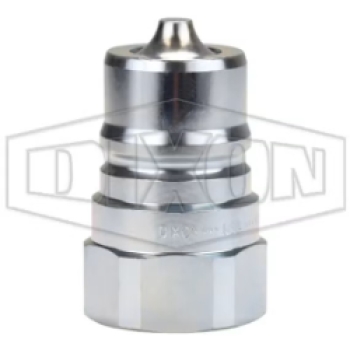

Dixon® K Series Trivalent Chrome-Plated Steel Quick Disconnect x FNPTF ISO-A Interchange Plug

Dixon® K Series ISO-A Interchange Plug, Quick Disconnect X NPTF, Trivalent Chrome-Plated, Steel

pin-int

Dixon® ISO-A Interchange Plug, Series: K, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-5/8 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.79 in OD x 2.87 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Gender 2      :      Female
Hex Size      :      1-5/8 in
Industry Category      :      Hydrulic Quick Disconnects~Hydraulic Quick Disconnect Couplings
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      4000 psi
Series      :      K
Shape      :      Plug
Thread Size 2      :      1-11-1/2
Poppet style shut-off valvesMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel nipples are hardened to provide heavy-duty performance and resist brinellingInterchangeable to ISO7241 Series AParker 6600 Series, Aeroquip/Eaton FD56 (5600)Faster ANV, Hansen HA 15000, Safeway S56 Series
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_16KBF16_CAT.pdf
