Dixon® GSTC30 GSTC30

Dixon® GSTC30

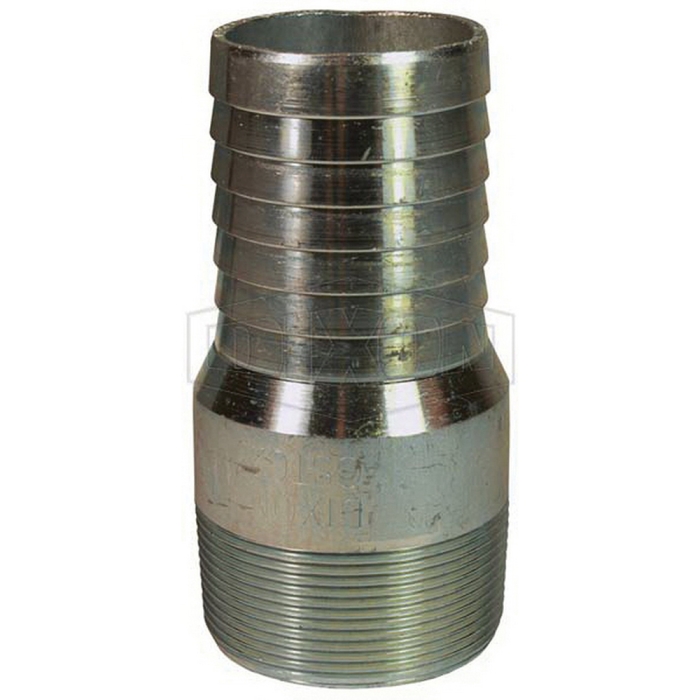

Dixon® King™ GSTC30 Plated Steel Global Combination Nipple, 2-1/2 in Hose Barb x 2-1/2 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: GSTC30
  • MPN: GSTC30
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® King™ Global Combination Nipple, Connection Type 1: Hose Barb, Connection Size 1: 2-1/2 in, Thread Size 1: 2-1/2-8, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 2-1/2 in, Material Construction: Steel, Finish: Plated, 2-7/8 in Diameter, 5-9/16 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      2-1/2 in
Connection Size 2      :      2-1/2 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      NPT
Diameter      :      2-7/8 in
Finish      :      Plated
Gender 2      :      Male
Industry Category      :      Combination Nipples & Menders
Length      :      5-9/16 in
Material      :      Steel
Material Construction      :      Steel
Shape      :      Nipple
Sub Brand      :      King™
Thread Size 1      :      2-1/2-8
Applications: For low-pressure discharge and suction service for compatible liquidsSafety Notes: King combination nipples are not recommended for steam.The working pressure may vary with the construction of the hose, the type of clamping system used and the application.Consult Dixon® for recommendations.In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.Not for compressible products such as air or nitrogen.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GSTC1_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GSTC30_TD.pdf
