Dixon® ST120

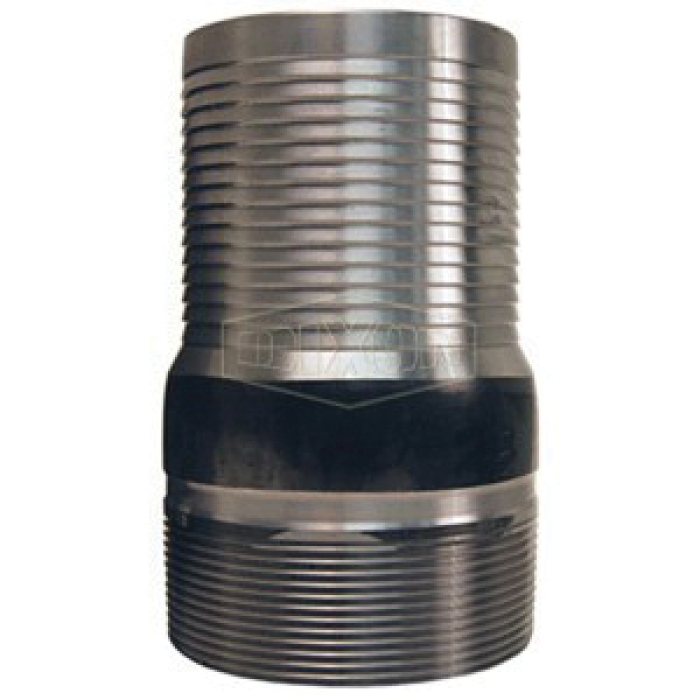

Dixon® King™ Combination Nipple, Connection Type 1: Hose Barb, Connection Size 1: 12 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 12 in, Material Construction: Steel, Finish: Unplated, 12-3/4 in Diameter, 15 in Length

California residents see Prop 65 WARNINGS

• NPT threaded end no knurl
• King™ combination nipples are not recommended for steam

Applications: Recommended for low-pressure discharge and suction service for compatible liquids

Safety Notes:

• King combination nipples are not recommended for steam.
• The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
• Consult Dixon® for recommendations.
• In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
• For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
• Not for compressible products such as air or nitrogen.
