Dixon® STC1015 STC1015

Dixon® STC1015

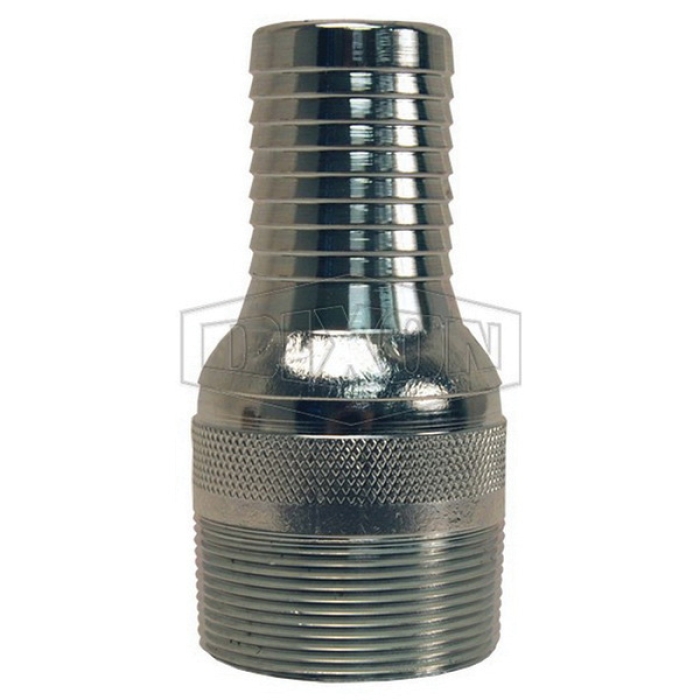

Dixon® King™ STC1015 Plated Steel Jump Size Combination Nipple, 1 in Hose Shank x 1-1/4 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: STC1015
  • MPN: STC1015
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® King™ Jump Size Combination Nipple, Connection Type 1: Hose Stem, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1-1/4 in, Material Construction: Steel, Finish: Plated, 3-3/4 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Hose Stem
Connection Type 2      :      NPT
Finish      :      Plated
Gender 2      :      Male
Industry Category      :      Marine Industrial Hose Ends~Combination Nipples & Menders
Length      :      3-3/4 in
Material      :      Steel
Material Construction      :      Steel
Shape      :      Nipple
Sub Brand      :      King™
Applications: For low-pressure discharge and suction service for compatible liquidsSafety Notes: King combination nipples are not recommended for steam.The working pressure may vary with the construction of the hose, the type of clamping system used and the application.Consult Dixon® for recommendations.In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST35_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STC2535_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STC1015_TD.pdf
